Hydraulic hedge trimmer HR-160

mounted

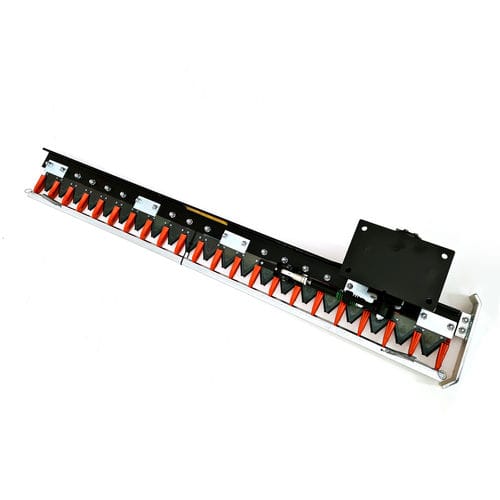

Hydraulic cutter bar, hedge trimmer - DELEKS® HR-160 - Made in Italy 2 years warranty Hydraulic cutter bar DELEKS® HR is ideal for trimming hedges and branches up to about 2.5 cm in diameter. The set-up includes the hydraulic motor and the mounting plate with 4 mounting holes (measures shown in the images). The cutter bar is controlled by the hydraulic system of the tractor / operating machine. Requirements: The hydraulic oil flow: 20-60 l/min. The operating machine must be equipped with a circuit with a return oil duct (if a certain flow is exceeded, the oil is returned directly to the oil discharge line). CHARACTERISTIC - UNITS METRIC Working width - 1600.0 mm Overall width - 1680.0 mm Weight - 62.0 kg Maximum cutting diameter - 20.0-30.0 mm Number of Blades - 21 Min./Max. Relief Pressure - 140 - 180 bar Min./Max. Flow - min. 20 l/min Packing sizes - 1680.0*600.0*300.0 mm
