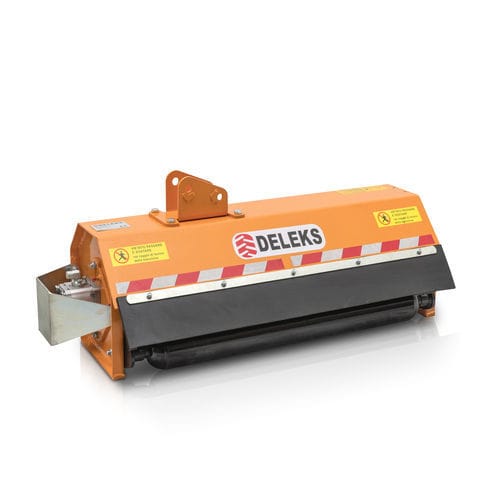

Mounted mulcher AR-60

knifeforestry24 knives

Digger Flail Shredder Head - DELEKS® - hydraulic brush cutter for mini excavator - 60cm - Hydraulic motor Made in Italy, 2 years warranty Shredder for mini excavators of 0.8-1.8 tons. Hydraulic mulcher for brambles, bushes, ditches, banks, embankments, branches. Suitable for Mini-excavator brands as Caterpillar, Takeuchi, Kubota, JCB, Case, Komatsu, Kubota, Yanmar, etc. Attachment measures: see pictures. Alternatively we can make an ad-hoc linkage on design. An additional production cost will be applied). Requirements for the operating machine: a) Preferable with double pump: 1 for the crawler 1 for operation of the mulcher (pump capacity at least 25/30 l / min) b) The rotation of the knives goes in both directions (a double-acting pedal is necessary). c) The pump requires a third drainage pipe that goes into the tank. CHARACTERISTIC - UNITS METRIC Overall width - 820.0 mm Min / Max cutting height - 20.0 - 80.0 mm Hood height - 330.0 mm Maximum cutting diameter - 20.0 mm Main hood thickness - 4.0 mm Transmission: RPM Rotor speed - 1500 r/min Rotor: diameter - 78.0 mm Rotor: bearings type and size - GB276-6007 Rotor: balancing - Electronic Rotor: sheet thickness - 10.0 mm Rear roller: diameter - 102.0 mm Rear roller: sheet thickness - 4.0 mm Rear roller: bearings type and size - φ25 Min./Max. Relief Pressure - 120 - 150 bar
