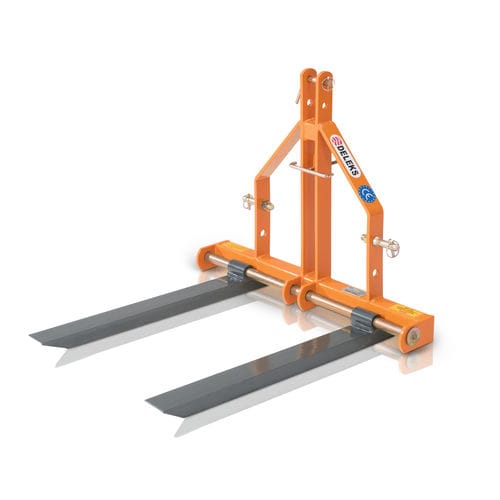

Pallet fork D-300

2-tine

Pallet forks DELEKS® for low power tractors like Kubota, Iseki, New Holland - Lifting capacity 300kg OVERVIEW The D-300 Pallet forks will handle most lifting and light weight towing tasks without ruining your machines power or lift capacity. Universal forks for pallet lifting. Ideal for Japanese tractors Kubota, Kioti, Iseki, Pasquali, Yanmar, Solis, Mahindra, and narrow tractors like New Holland Boomer 25, John Deere, Pasquali, Ferrari etc. Universal 3 point linkage Cat. 1. EC Declaration of Conformity, 2 year warranty. BENEFITS & FEATURES DELEKS® carriage design allows fork tines to be easily re-spaced or changed and locked into place. The weight of the load is distributed over three points so it will not cause stress failures. Hight adjustable forks to carry out warehouse or farm work. Forks can be folded away during transit when not in use. CHARACTERISTIC - UNITS METRIC Overall width - 910.0 mm Weight - 54.0 kg Overall height - 740.0 mm (open) Tractor Power Range - 12 - 45 Hp 3 point linkage - Cat. 1 (ø 19.0-22.0mm) Load capacity - 300.0 kg 3 point linkage Thickness - 15.0 mm Spacing between the 2 lower points - 360.0 / 610.0 mm Usable Fork Tine Length - 750.0 mm Fork Tine Length - 900.0 mm Fork Tine Height - 45.0 mm Fork Tine Width (single tine) - 80.0 mm Fork Tine Thickness - 7.0 mm Fork Tine Weight - 7.6 kg
