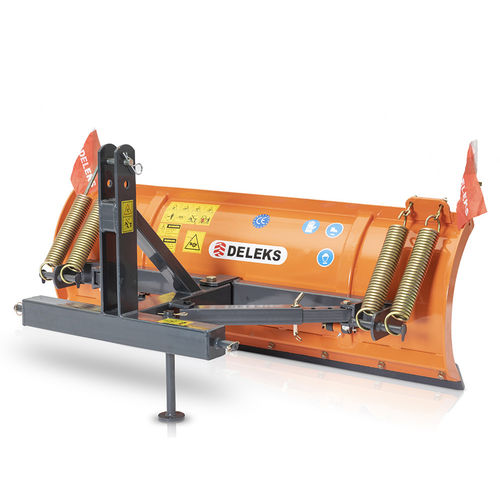

Straight snow plough LNS-190-C

with hydraulic adjustmenton 3-point tractor front linkagewith rubber scraper

Three point linkage snowplow, DELEKS® snowblade 190cm for front and rear use on tractors Kubota, Iseki, Yanmar. OVERVIEW LNS-C snowplows have been designed for remove snow on roads, pavements, driveways, carparks, fields etc. Their sturdy structure means that they can not only handle heavy snow, but also they can be used as a grader blade during the warmer months. They attach to tractors using Cat 1, three point linkage and have been designed to be used with 25 to 45hp tractors e.g. Kubota BX-B, Iseki, Yanmar, Ford, McCormick etc. The tractor does not require a hydraulic system. Instead, it uses two hydraulic jacks for hydraulic piston angling (optional). Conforms to the EC Machinery Directive. 2 years guarantee. BENEFITS AND FEATURES Anti-shock system with 4 shock absorbing springs to operate in maximum safety. Extreme ease of assembly and use. Sharp replaceable steel. On request also available with Rubber blade. The 3-point hitch is removable and replaceable with plate fitting or Mini skid steer loaders. Homologated for road use. CHARACTERISTIC - UNITS METRIC Weight - 136.0 kg Overall height - 880.0 mm Tractor Power Range - 25 - 45 Hp Overall Length - 620.0 mm Spacing between the 2 lower points - 690.0 - 800.0 mm Distance between the 2 lower points and ground - 11.81 in Min./Max. Relief Pressure - 110 - 150 bar Min./Max. Flow - 18 - 22 l/min Interface - 3 Point linkage cat. 1 (19.0 - 22.0 mm)
