Soil moisture sensor ML3

temperature

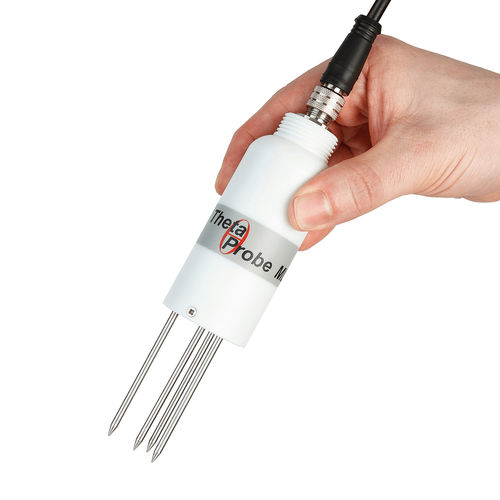

• Class leading ± 1% soil moisture accuracy • Can be buried or used as portable probe • Easy data logger connection (0 – 1 VDC) With its 1% accuracy the ThetaProbe has set the standard for soil moisture measurement for more than 20 years. Highly accurate yet easy to use With the ML3 ThetaProbe Soil Moisture Sensor it’s easy to make reliable, accurate soil moisture measurements. Simply insert the soil moisture probe into the soil, connect to your data logger or readout unit, provide 5-14 VDC at 18 mA, and within seconds you can be logging soil moisture. The ML3 ThetaProbe is robust, buriable and maintenance free (environmentally protected to IP68). It can be easily installed at depth into augered holes using the optional extension tubes. The ML3’s excellent salinity response has been characterised at EC values up to 2000 mS.m-1. It also has a wide operating temperature range, allowing it to be used at temperatures as low as -40 degrees C (non-flexing cables). The ML3 includes a thermistor sensor for the measurement of soil temperature of soil temperature with soil moisture (probe must be fully buried). Data logging and readout The ML3 can be logged by any Delta-T data logger; it is compatible with any logger that can provide 5 – 15V DC excitation power and will accept the 0 – 1V output signal. For portable applications the ML3 connects to the HH2 Moisture Meter and they can be ordered together as the convenient ThetaKit – see below (please note that the HH2 Meter does not provide temperature readings).
