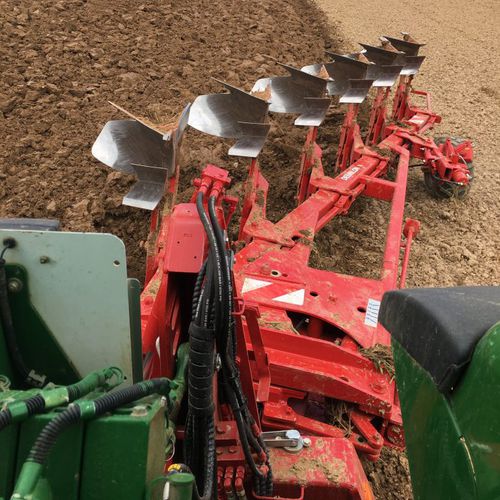

Mouldboard plow TC 75 LV

mountedreversiblewith hydraulic adjustment

4 high-clearance safety devices The LV range is available with 4 high-clearance safety devices (shear bolt, traction bolt, mechanical and Non-Stop Hydraulic). It includes the structural elements of the adjustable width range. All the joints of these models are made of screed, bushed and fitted with grease nipples. The aim is to optimise the longevity of each moving element. All models have an automatic re-centring system with built-in memory, which can be locked using a ¼ turn valve to cut the realignment. The new 8DX head, designed for the larger models in the mounted range, features a Cat hitch. III/IV hitch. The boom diameter is 126 mm. A complete equipment : The machines are equipped with an automatic hitch, except for the 8DX heads. The hydraulic furrow catching system with memory is standard on all models. All models can be fitted with a solenoid valve to couple 2 double-acting functions. (optional) The bodies are equipped with reinforced forged coulters or reversible point coulters.
