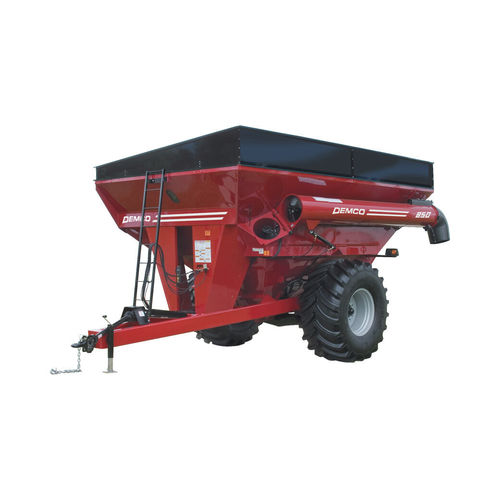

Chaser bin 850

single-axlegrainself-unloading

-1000 RPM PTO. -Hydraulic drive (35-40 GPM minimum oil flow required). -Automatic reset “cut-out” clutch with overrunning clutch to protect auger drive and ractor PTO -18" diameter balanced auger with 3/8" flighting and Posi-Lock connection. -UltraFlyte made with 1008/1010 high carbon steel including a thicker outer edge, resulting in up to 50% longer wear and faster conveying. -Optional chrome flighting for improved wear resistance. -30" hydraulic controlled flow gate. -Auger positioned for operator visibility. -Auger folds within the width of the box for compact transporting and storage. -1 grain viewing window. -Welded box construction with silicone sealed seams resists rust and corrosion. -7000 lb. drop-leg tongue jack with separate storage position provides tighter turning radius. -Hand wheel operated clean-out door at bottom of auger for easy post season cleanup. -LED Tail, flasher/turn signal lights and halogen auger spotlight for nighttime operation. -Available with 120" fixed or 120" - 144" adjustable axle tread width. 22,500 lb. Ductile Iron Hubs -Transport width with single wheels set on 120" centers: 12' 9" -Transport safety chain -Adjustable auger spout -Camoplast Trailed Track System - Reduces ground pressure by 30-80% versus tires, reduces the number of contact points, increases mobility and field access especially in softer footing conditions, and maximizes the performance potential of the large capacity carts.
