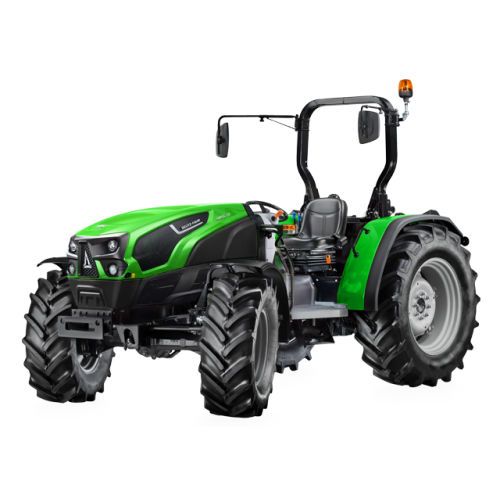

Powershuttle tractor 5 TB SERIES
4-cylindercompactwith ROPS

powershuttle tractor
powershuttle tractor
powershuttle tractor
powershuttle tractor
powershuttle tractor
powershuttle tractor
powershuttle tractor
powershuttle tractor
powershuttle tractor
powershuttle tractor
powershuttle tractor
powershuttle tractor
powershuttle tractor
powershuttle tractor
powershuttle tractor
Add to favorites
Compare this product


Characteristics

Transmission
powershuttle
Number of cylinders
4-cylinder
Other characteristic
compact, 3-point hitch, with ROPS, front PTO
Engine power

101 ch, 106 ch, 110 ch, 116 ch
(101 hp, 106 hp, 110 hp, 116 hp)

Displacement

3,849 cm³
(130 US fl oz)

Wheelbase

2,400 mm
(94.5 in)

PTO speed

540 rpm, 1,000 rpm
(3,392.9 rad.min-1, 6,283.2 rad.min-1)

Torque

433 Nm, 472 Nm
(319 ft.lb, 348 ft.lb)

Fuel tank capacity

85 l
(22.5 gal)

Total length

4,117 mm
(162.1 in)

Total height

2,395 mm
(94.3 in)

Weight

3,400 kg
(7,495.7 lb)

Description

MAXIMUM AGILITY WITH THE NEW 5 TB SERIES. Whether you are working in an olive grove, a greenhouse, or an orchard, on a farm with arable land, or engaging in hay-making activities, the new 5 TB series is designed to be the star of the show. The low profile of the hood and mudguards, combined with the low center of gravity and the robust axles, render the 5 TB machines unique, and ideally suited to working on slopes or under tree canopies. Some of the outstanding technical features include FARMotion 45 engines (compliant with Stage V emissions standards) with 106 HP or 116 HP of power, four transmission versions, from 10+10 gears to 40+40 gears, with mechanical or electro-hydraulic shuttle (PowerShuttle), the Stop&Go function for starts and stops using the brake pedal alone, and SDD (Steering Double Displacement) rapid steering, which enables the end position to be reached with half the number of turns of the wheel. Machines in this series also boast brakes on four wheels, a mechanical rear lift with a maximum lifting capacity of 4525 kg, an optional front lift, and a hydraulic pump with a flow rate of up to 70 l/min. The driver's platform – which is suspended in a vibration-free position and has an easy-to-read digital instrument cluster – meets the most demanding comfort requirements. With the new 5 TB models, you can massively increase your productivity and thus also the profitability of your farm. Make the decision now, and secure exceptional prospects for the future. Choose the new 5 TB series.
