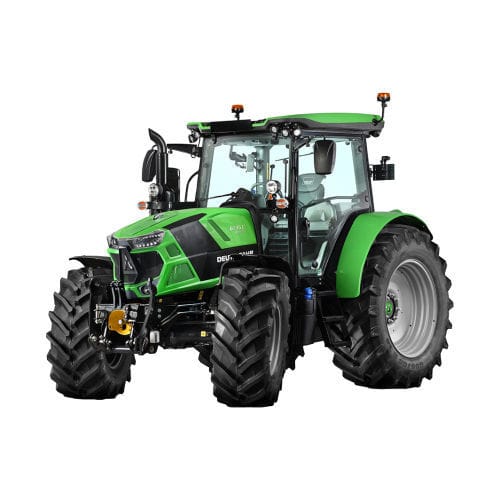

Power-shift tractor 6C Series
4-cylindercompact3-point hitch

power-shift tractor
power-shift tractor
power-shift tractor
power-shift tractor
power-shift tractor
power-shift tractor
power-shift tractor
power-shift tractor
power-shift tractor
power-shift tractor
power-shift tractor
power-shift tractor
power-shift tractor
power-shift tractor
power-shift tractor
power-shift tractor
power-shift tractor
power-shift tractor
power-shift tractor
power-shift tractor
power-shift tractor
Add to favorites
Compare this product


Characteristics

Transmission
power-shift
Number of cylinders
4-cylinder
Other characteristic
compact, 4 wheel drive, with cab, 3-point hitch, front PTO
Engine power

Max.: 143 ch
(143 hp)

Min.: 110 ch
(110 hp)

Displacement

3,849 cm³
(130 US fl oz)

Wheelbase

2,480 mm, 2,510 mm
(97.6 in, 98.8 in)

PTO speed

2,000 rpm, 2,200 rpm
(12,566.4 rad.min-1, 13,823 rad.min-1)

Torque

Max.: 576 Nm
(425 ft.lb)

Min.: 463 Nm
(341 ft.lb)

Maximum speed

40 km/h
(24.9 mph)

Fuel tank capacity

160 l
(42.3 gal)

Total length

4,425 mm, 4,500 mm, 4,530 mm
(174.2 in, 177.2 in, 178.3 in)

Total height

2,785 mm, 2,860 mm
(109.6 in, 112.6 in)

Weight

4,600 kg, 5,000 kg, 5,500 kg
(10,141.3 lb, 11,023.1 lb, 12,125.4 lb)

Description

Total configurability. Offering endless scope for configuration, with 3 models, power outputs from 126 to 143 HP, a choice of 3 transmission types, potent hydraulic systems with load sensing pumps with capacities up to 120 l/min and a host of options, these tractors can be tailored to perfection for even the most specific need. All 6C Series models come with four cylinder Stage V engines, TopVision 4-pillar cabs and a choice of all-new SDF Smart Farming Solutions. Ultra-compact, ultra-efficient. As well as outstanding levels of reliability and performance, the new Deutz TCD 3.6 / FARMotion 45 Stage V four cylinder engines also boasts extraordinarily low operating costs. These state of the art engines feature impressive torque over a very broad range of engine speeds ensuring rapid responsiveness to changes in load. Electronically controlled common rail fuel injection, the eVisco viscostatic fan, PowerCore air filters and highly efficient transmissions form an impressive package of high-tech solutions minimising both fuel and AdBlue consumption. Generously sized tanks (with a 160 litre fuel tank and 12 litre urea tank) ensure more than adequate range for every possible task. Offered with a choice of power outputs up to 120, 129 and 137 HP (for the 6115C, 6125C and 6135C models respectively), all engine variants also include a specific power boost map implemented automatically when the PTO is in use or at road speeds exceeding 15 km/h, which increases the maximum power of the respective model to 126, 136 and 143 HP.
