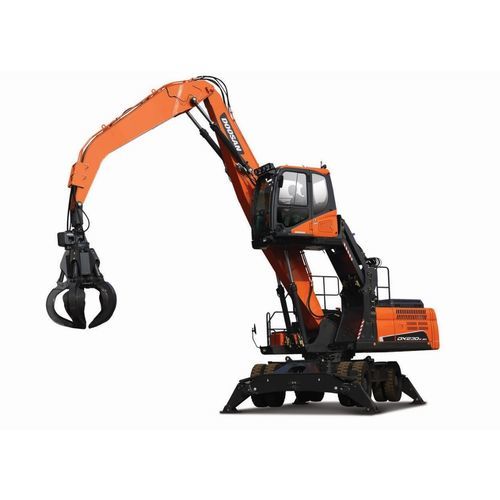

Hydraulic excavator DX230WMH-5

The new DX230WMH-5 is 23 tonne Stage IV compliant material handler for use in the solid waste, recycling, demolition and forestry industries. The DX230WMH-5 has two arm cylinders for extra balance and a more stable arm to lessen movement in attachments such as grapples. The maximum pin height is 11.7 m, the maximum operating reach is 10.1 m and the maximum working depth is 4.2 m. Another special feature is the elevating cab, which provides excellent visibility and high flexibility. Easily accessed from ground level, the cab height can be adjusted by the operator to a maximum of 2.5 m for better visibility during operation. The operator can adjust the elevating cab from their position inside the cab, with an emergency lowering lever installed at the rear of the seat in the cab. Maximum swing speed - 9.8 RPM Maximum swing torgue - 6387 kgf.m Upper structure without front - 10850 kg Undercarriage - 7600 kg Front assembly - 3300 kg Counterweight - 4000 kg Boom 6.5 m - 1800 kg Arm 4.5 m Gooseneck - 1100 kg Arm 4 m Straight - 1380 kg Hydraulic elevating cab - 1190 kg Stabilizer - 1221 kg Stabilizer cylinder (each) - 113 kg Max. bucket pin height - 11400 mm Max. working reach - 10045 mm / 10090 mm (4500 Gooseneck / 4000 Straight) Min. swing radius - 2300 mm Elevation height - 3755 mm Tail swing radius - 2755 mm Wheel base - 2850 mm Upper housing width - 2700 mm Ground clearance - 350 mm Tread width - 2114 mm Height over cab - 5450 mm Boom lenght - 6100 mm Main pumps max flow - 2 × 236 l/min
