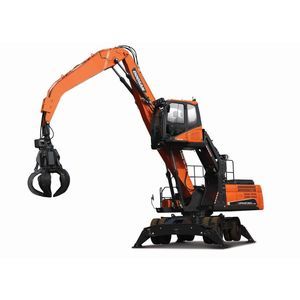

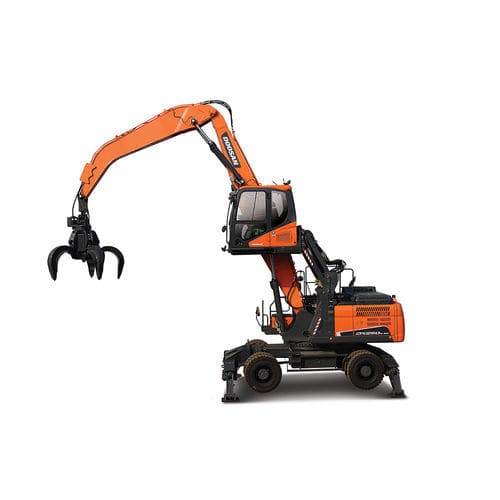

Hydraulic excavator DX250WMH-5

The new DX250WMH-5 is 25 tonne Stage IV compliant material handler for use in the solid waste, recycling, demolition and forestry industries. Based on Doosan’s popular DX210W-5 21 tonne wheeled excavator, the new DX250WMH-5 material handler has been designed specifically for a wide range of material sorting and handling applications such as those in the scrap metal and other solid waste and recycling industries, as well as logging. Designed to carry out the toughest tasks, the DX250WMH-5 is built with front and rear stabilizers, and a boom and arm specifically designed for material handling tasks. A standard feature is the hydraulic cab riser, which gives the operator better all-around visibility of the attachment and work area. Machine Specs Engine - DL06 Maximum swing speed - 9.8 RPM Maximum swing torgue - 6387 kgf.m Upper structure without front - 12065 kg Undercarriage - 7600 kg Front assembly - 4010 kg Counterweight - 5200 kg Boom 6.5 m - 2000 kg Arm 4.5 m Gooseneck - 1200 kg Arm 4 m Straight - 1380 kg Hydraulic elevating cab - 1190 kg Stabilizer - 1221 kg Stabilizer cylinder (each) - 113 kg Max. bucket pin height - 12000 mm Max. working reach - 10700 mm / 10400 mm (4500 Gooseneck / 4000 Straight) Min. swing radius - 2600 mm Elevation height - 2500 mm Tail swing radius - 2860 mm Wheel base - 2850 mm Upper housing width - 2700 mm Ground clearance - 350 mm Tread width - 2114 mm Height over cab - 5450 mm Boom lenght - 6500 mm Main pumps max flow - 2 × 236 l/min
