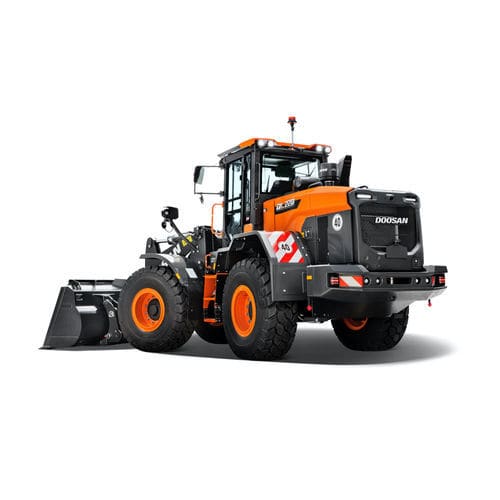

Rubber-tired loader DL220-7

with cabcompact

Boost your productivity with the new DL220-7 Doosan wheel loader. Exceptional power – combined with the finest workmanship – results in a machine that performs at the highest level. The DL220-7 enhances your output from every angle Impressive breakout force and high traction make penetration easy and allow you to tackle the hardest materials. General Purpose Buckets General purpose Straight side cutter, teeth, width 2550 mm - 2.2 m³ Straight side cutter, Bolt-on cutting edge, width 2550 mm - 2.3 m³ Performance bucket - straight side cutter, teeth, width 2550 mm - 2.4 m³ Performance bucket - straight side cutter, Bolt-on cutting edge, width 2550 mm - 2.5 m³ Material handling Convex side cutter, teeth, width 2550 mm - 2.4 m³ Convex side cutter, Bolt-on cutting edge, width 2550 mm - 2.5 m³ Machine Specs Bucket capacity - 2.3 m³ Tipping load - 10.652 kg Static tipping load, at 40° - 9.383 kg Length with bucket - 7.458 mm Width with bucket - 2.539 mm Height - 3.313 mm Dump height (at 45°) with bolt-on cutting edge - 2.784 mm Dump reach (at 45°) with bolt-on cutting edge - 1.010 mm Wheelbase - 3.050 mm Engine - Doosan DL06 Stage V (6-cylinder) Breakout force - 97 kN
