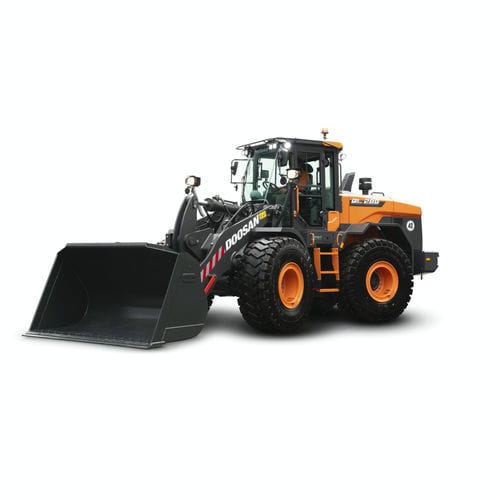

Rubber-tired loader DL320-7

with cab

The DL320-7 and DL380-7 enhance your output from every angle Impressive breakout force and high traction make penetration easy and allow you to tackle the hardest materials. Boost your productivity with the new DL320-7 and DL380-7 Doosan wheel loaders. Exceptional power – combined with the finest workmanship – results in machines that perform at the highest level. General Purpose Buckets General purpose Straight side cutter, teeth, width 3000 mm - 3.3 m³ Straight side cutter, Bolt-on cutting edge, width 3000 mm - 3.5 m³ Performance bucket - straight side cutter, teeth, width 2910 mm - 3.7 m³ Performance bucket - straight side cutter, Bolt-on cutting edge, width 2910 mm - 3.8 m³ Material handling Convex side cutter, teeth, width 2910 mm - 3.7 m³ Convex side cutter, Bolt-on cutting edge, width 2910 mm - 3.8 m³ Machine Specs Bucket capacity - 3.3 m³ Tipping load - 15.948 kg Static tipping load, at 40° - 14.079 kg Length with bucket - 8.530 mm Width with bucket - 3.000 mm Height - 3.511 mm Dump height (at 45°) with bolt-on cutting edge - 2.887 mm Dump reach (at 45°) with bolt-on cutting edge - 1.360 mm Wheel Base - 3.300 mm Engine - Doosan DL08 Stage V (6-cylinder) Breakout force - 170 kN
