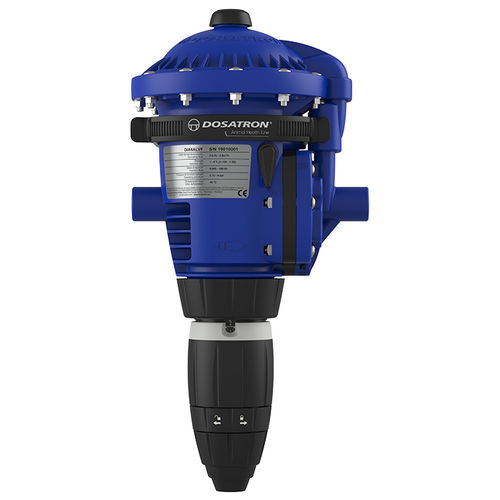

Dosing pump DIA4AL

waterfood additif dosingdrug dosage

This Diaphragm Metering Pump meets the dosing needs from 4.5 to 2500 l/h. .Best performances at low flow (young animals / small groups) .Best performances at low pressure (headertanks, pressure drops) .Unequalled motor lifespan including water loaded with minerals .Easy & cost effective motor maintenance .4% dosing capability for a better powder solubility .External injection to protect the motor from chemical attacks Specifications .Injection range 1 - 4 % [1:100 - 1:25] .Concentrated additive injection 0,045 l/h - 100 l/h .Stroke volume ~ 0,47 l .Connections NPT-BSP 3/4"M Serial equipments Seals for acidic additives (Integrated by-pass) system for manual activation of the additive suction (on) and stop (off)
