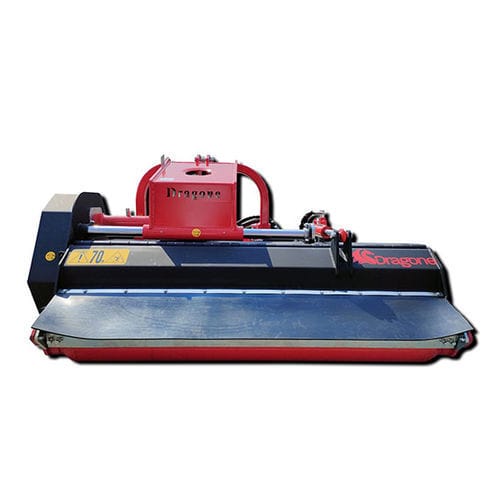

Mounted mulcher MPFXA series
hammerknifeforestry

Mounted mulcher - MPFXA series - Dragone S.r.l. - hammer / knife / forestry
Mounted mulcher - MPFXA series - Dragone S.r.l. - hammer / knife / forestry
Mounted mulcher - MPFXA series - Dragone S.r.l. - hammer / knife / forestry - image - 2
Mounted mulcher - MPFXA series - Dragone S.r.l. - hammer / knife / forestry - image - 3
Mounted mulcher - MPFXA series - Dragone S.r.l. - hammer / knife / forestry - image - 4
Mounted mulcher - MPFXA series - Dragone S.r.l. - hammer / knife / forestry - image - 5
Add to favorites
Compare this product


Characteristics

Type
mounted
Technology
hammer, knife
Applications
forestry, for orchards, vineyard
Number of hammers
16 hammers, 20 hammers, 24 hammers, 18 hammers, 22 hammers, 28 hammers
Other characteristic
PTO-driven, hydraulic, for tractors
Cutting width

Max.: 240 cm
(94.49 in)

Min.: 130 cm
(51.18 in)

Rotational speed

540 rpm, 750 rpm, 1,000 rpm
(3,393 rad.min-1, 4,712 rad.min-1, 6,283 rad.min-1)

Tractor power

Max.: 120 ch
(120 hp)

Min.: 60 ch
(60 hp)

Weight

Max.: 1,275 kg
(2,810.89 lb)

Min.: 652 kg
(1,437.41 lb)

Description

Semi-forestry mulcher with hardox body suitable for stony ground and large caliber branches. Standard equipment – Supplement for opening door with reinforced case and welded belt protection – Triple counter knife – Ø 194 x 8 roller with profiled scraper – Rear attachment – Adjustable rear roller – Multiplier with freewheel – Case thickness 10 mm – Case thickness 6 mm for MPFX in HARDOX – Knives or hammers – Right-side rounded panel and without protrusion – Reinforced front bulkhead – Galvanized shafts – Cardan excluded Optional – Front Chain Guard Assembly With Rubber deflector MPF/MPFX – Adjustable reinforced iron wheels – Reversible attachment (STANDARD gearbox with double freewheel) – Fixed machine version without hydraulic movement
