Mounted mulcher COBRA EXTREME series
hammerforestryfor orchards

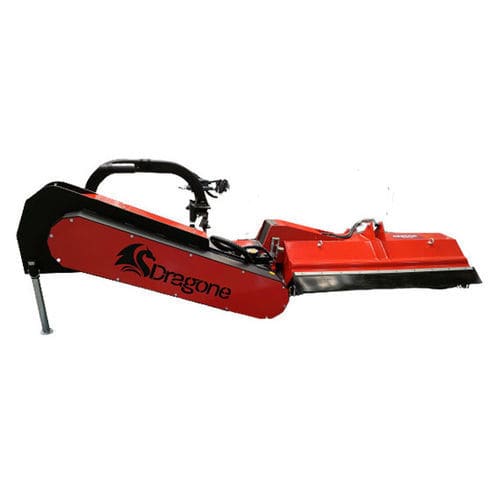

Mounted mulcher - COBRA EXTREME series - Dragone S.r.l. - hammer / forestry / for orchards
Mounted mulcher - COBRA EXTREME series - Dragone S.r.l. - hammer / forestry / for orchards
Mounted mulcher - COBRA EXTREME series - Dragone S.r.l. - hammer / forestry / for orchards - image - 2
Mounted mulcher - COBRA EXTREME series - Dragone S.r.l. - hammer / forestry / for orchards - image - 3
Mounted mulcher - COBRA EXTREME series - Dragone S.r.l. - hammer / forestry / for orchards - image - 4
Add to favorites
Compare this product


Characteristics

Type
mounted
Technology
hammer
Applications
forestry, for orchards, vineyard
Number of hammers
16 hammers, 12 hammers, 14 hammers
Other characteristic
PTO-driven, hydraulic, for tractors, folding
Cutting width

Max.: 240 cm
(94.49 in)

Min.: 175 cm
(68.9 in)

Rotational speed

1,000 rpm
(6,283 rad.min-1)

Tractor power

Max.: 130 kW
(176.8 hp)

Min.: 70 kW
(95.2 hp)

Weight

Max.: 1,705 kg
(3,758.88 lb)

Min.: 1,495 kg
(3,295.91 lb)

Description

Lateral shredder designed for river banks, ditches, embankments with a rotation system that allows a positive inclination of 90 ° and negative of 70 ° making the mulcher very versatile, also equipped with an anti-collision system that prevents sudden and harmful impacts Standard equipment – Hardox case – Automatic locking system cutter closed for transport – 6-belt drive – Double counter-knife – Rubber rear protection – Chain and rubber front protection – Case height from the grounds (mm) 670 – Rotor tube ∅ (mm) 194 * 12 – Cutting D 575mm – Forestry hammer type RM69 – Rear Roller D200 mm – Profile roller scraper Optional – Front opening case – Stabilizer roller – Double case
