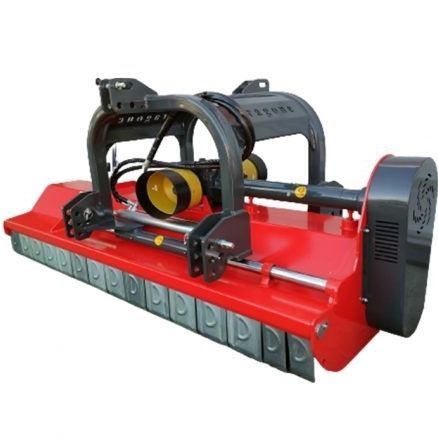

Rear-mount mulcher MTP series
foreheadhammerknife

rear-mount mulcher
rear-mount mulcher
rear-mount mulcher
rear-mount mulcher
rear-mount mulcher
rear-mount mulcher
Add to favorites
Compare this product


Characteristics

Type
rear-mount, forehead
Technology
hammer, knife
Applications
for orchards, grass, vineyard
Number of hammers
16 hammers, 20 hammers, 24 hammers, 12 hammers, 18 hammers, 22 hammers, 14 hammers, 26 hammers, 10 hammers
Number of knives
48 knives, 40 knives, 24 knives, 32 knives, 36 knives, 44 knives, 28 knives, 52 knives, 20 knives
Other characteristic
PTO-driven, hydraulic, for tractors
Cutting width

Max.: 240 cm
(94.49 in)

Min.: 90 cm
(35.43 in)

Rotational speed

540 rpm, 750 rpm, 1,000 rpm
(3,393 rad.min-1, 4,712 rad.min-1, 6,283 rad.min-1)

Tractor power

Max.: 100 ch
(100 hp)

Min.: 35 ch
(35 hp)

Weight

Max.: 862 kg
(1,900.38 lb)

Min.: 290 kg
(639.34 lb)

Description

Shredder, rotor and reinforced transmission suitable for cutting grass, pruning residues and medium-sized twigs suitable for stony soils. Standard equipment – Rear hitch – Adjustable roller to change cutting heigh – Multiplier with freewheel – Knives or Hammers – Right – side rounded panel and without protrusions – One counter-knife – Galvanized shafts – Rotor Increased – Double welded case in DOMEX sheet metal – Rear roller scraper in profiled steel – Cardan excluded Optional – Front attack – Reversible attack – Double stamped counter-knife – Hydraulic displacement – Sledges – Pvc front bulkhead – Chains to replace the bulkheads – Adjustable iron wheels – Adjustable side skids – KIT Hydraulic drive flange (excluding engine) – Front Chain Guard Assembly with Rubber deflector – Harves spikes – Hydraulic pump GR2 support (on gearbox) for combined machine – Increased shift 100 mm – Mechanic shift – Supplement for reinforced rotor ∅ 194 for 100 to 200 cm shredder
