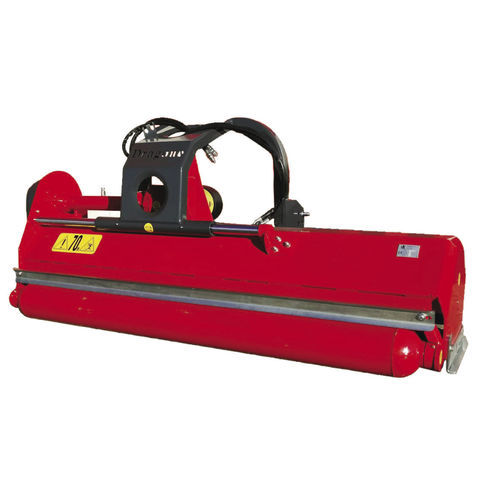

Mounted mulcher MT series
hammerknifefor orchards

Mounted mulcher - MT series - Dragone S.r.l. - hammer / knife / for orchards
Mounted mulcher - MT series - Dragone S.r.l. - hammer / knife / for orchards
Mounted mulcher - MT series - Dragone S.r.l. - hammer / knife / for orchards - image - 2
Mounted mulcher - MT series - Dragone S.r.l. - hammer / knife / for orchards - image - 3
Mounted mulcher - MT series - Dragone S.r.l. - hammer / knife / for orchards - image - 4
Add to favorites
Compare this product


Characteristics

Type
mounted
Technology
hammer, knife
Applications
for orchards, vineyard
Number of hammers
16 hammers, 20 hammers, 12 hammers, 18 hammers, 14 hammers, 10 hammers
Number of knives
40 knives, 24 knives, 32 knives, 36 knives, 28 knives, 20 knives
Other characteristic
PTO-driven, hydraulic, for tractors
Cutting width

Max.: 175 cm
(68.9 in)

Min.: 90 cm
(35.43 in)

Rotational speed

540 rpm, 750 rpm, 1,000 rpm
(3,393 rad.min-1, 4,712 rad.min-1, 6,283 rad.min-1)

Tractor power

Max.: 70 ch
(70 hp)

Min.: 30 ch
(30 hp)

Weight

Max.: 520 kg
(1,146.4 lb)

Min.: 250 kg
(551.16 lb)

Description

Shredder with raised inlet suitable for cutting grass and small pruning residues. Standard equipment – 3 Point Rear Hitch – Adjustable roller to change cutting heigh – Right – side rounded panel and without protrusions – Multiplier with freewheel – One counter-knife – Galvanized shafts – Cardan excluded – Rear roller scraper in angular profile – Knives or Hammers Optional – Frontal attack – Reversible attack – Double melted counter knife – Adjustable iron wheels – Hydraulic engine GR3 for shredder MT – Double front bulkhead in PVC – Harves spikes – Case in HARDOX – Hydraulic pump GR2 support (on gearbox) for combined machine – Supplement for ∅ 200 mm roller – Mechanic shift
