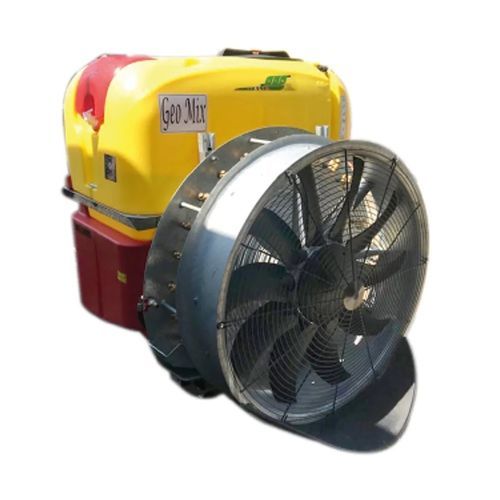

Tractor-mounted agricultural atomizer GEOMIX 1000 series

hydraulic

1) Polyethylene cistern 2) Circuit wash cistern 3) Supplementary hand wash cistern 4) Externally visible cistern level 5) Self-priming external suction filter 6) Hydraulic agitator 7) Two 40 mesh self-cleaning brass delivery filters 8) Stainless steel jet boom 9) Remote pressure regulator manifold on tractor 10) Product dissolver in the basket 11) Die-cast hot galvanised steel frame 12) Hot galvanised steel conveyor 13) Cast iron oil-bath gear multiplier unit, 2 speeds + idle 14) Adjustable axial rotor (+5° or -5°) Ø 900 with 10 nv glass-loaded nylon 6 blades and die-cast aluminium central hub 15) 3 shoe reinforced expansion clutch with ferrode 16) Rectifier with air compensator 17) Dual brass jets with drip preventer, quick closing 18) RH/LH solenoid valve kit, complete with self-cleaning filter, pressure gaugeø 100, manual pressure regulator and control panel, complete with cabling. (Optional) 19) Litre per hectare control kit (optional) 20) UNIVERSAL DRIVE SHAFT (OPTIONAL)
