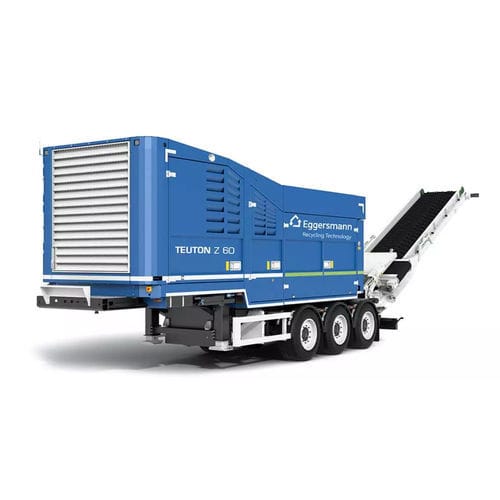

Towed bio shredder TEUTON Z 60

diesel enginetracked

The new big brother from the Eggersmann allrounder family! 30 tools are mounted to the three-meter-long shredding rotor. The counter comb is equipped with 19 teeth. Its simple and sturdy design enables a quick and flexible variation of the distances between the rotor tools and the counter comb tools. Depending on the requirements, different setting options are available to react to the desired size of the finished product. After passing the counter comb, the material falls onto the discharge conveyor. As an option, the machine can be equipped with a screen basket. In that case, the shredded material first falls onto this screen basket, which encloses the lower half of the rotor. The size of the finished product can additionally be adjusted with the screen basket. Highlights of TEUTON Z 60: -The rotor with spiral shaped, exchangeable tools tears the material through a counter comb which is adjustable in 10 steps -30 interchangeable shredding teeth in three rows distributed over the shredding rotor surface More highlights and options of TEUTON Z 60 -Variable final grain size due to tools-less cutting gap adjustment -Increases of the hopper capacity from approx. 4 m³ to approx. 7.3 m³ when using the double-sided hopper extension -Hydraulically swingable maintenance door for easy access to the shredding chamber -Large and wide conveyor belts for maximum material discharge -Discharge height rear conveyor up to max. 5,000 mm (caterpillar and wheel) -Storage space for all options -Hydraulic / mechanical drive
