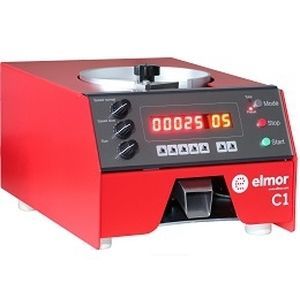

Automatic seed counter C1

researchlaboratory

The seed counter elmor C1 is a universal counting machine for small and irregularly shaped parts, such as: • Finest plant seeds • Vegetable seeds • Cereals, Corn, Rice, Canola • Insects, Pupae • Pharmaceuticals, pills, casules • Gems, diamonds and precious stones • Small mechanical parts • Implants Technical data: • Counter for small parts from 0.2 to 18 mm in diameter • Cylindrical parts can have a length of up to 20 mm • Only one adjustable conveyor bowl is used for the whole size range • Conveyor bowl: anodised Aluminium, sorting element FS-0. Other bowls and sorting elements available on request • No maintenance needed • Robust metal housing • Display and preset range of the counter: 0 to 99’999 • Modes of operation: Preset counter, Totaliser • The conveyor speed is reduced shortly before reaching the desired quantity to achieve a high dosing accuracy • External connections allow the combination of the seed counter C1 with other devices, e.g. packaging machines. Typical performance data for spherical parts of 2 mm diameter: • Counting speed: about 50’000 parts per hour • Counting error: 1/10’000 or better for clean, easy to separate parts Modes of operation: • Totaliser • Preset counter
