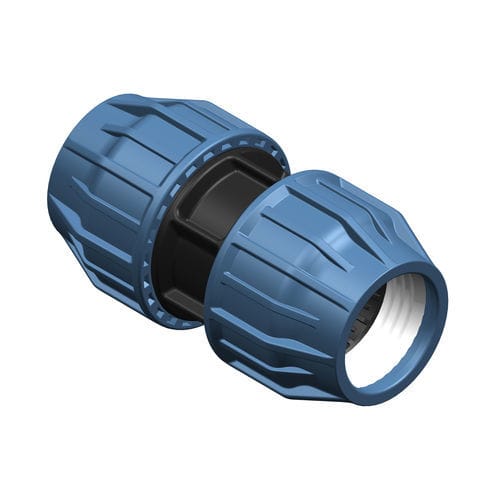

Straight compression irrigation fitting 381 PP

polypropylene

Compression Fittings Description: Range of fittings for high-pressure conveyance of water. irrigation, gaseous fuels, compressed air. Chemical solutions and slurries Range: - Metric series PN 16 Bar: from ø 16 mm up to ø 110 mm Metric series PN 10 Bar: from ø 20 mm up to ø 63 mm Push Fit series PN 16 Bar: ø 20 mm - ø 25 mm & ø 32 mm Zeeflex Pool hose series: ø 50 & ø 63 mm Rural series PN 10 Bar: from 3/4" to 2" Pressure Rating: 16 bar at 20°C for fittings from ø 16 mm up to ø 63 mm 12.5 bar at 20°C for fittings from ø 75 mm up to ø 110 mm Compression fittings are approved to bear the quality marks of: Materials: Body. Cap & Insert: Polypropylene copolymer PP-B Polyvinyl Chloride PVC for Zeeflex series (Pool Hose Fittings) Split Ring: Polyacetal O-Ring: Elastomeric rubber NBR70 Elastomeric rubber EPDM for Zeeflex series (Pool Hose Fittings) Reinforcing Ring: Stainless Steel The fittings are approved for use in potable water supply Systems The fittings are suitable for exposure to sunlight (UV) with excellent Chemical résistance
