Breather plug TMD series

filling

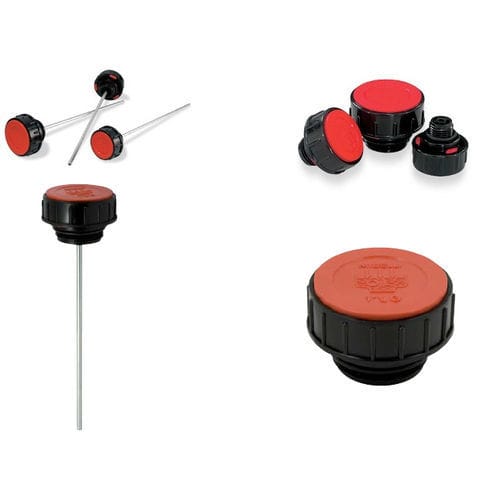

TMD - FILLER BREATHERS - Round headed filler breather, with vertical ribs for better grip , threaded connection. Standard production: black with red lid complete with graphic fill symbol and the text “OIL”; Manufactured from Polyamide 66 ensuring high mechanical resistance at both low and higher temperatures ( max working temp. 100°C-212 F); oil resistant O-Ring seal 70 Shore. The polyurethane air filter is located under the lid, easy to remove clean and reinstall; degree of filtration 50 micron. These filler breathers allow air passage at high volume, through the vents located on the bottom of the head; they are recommended to be used in systems where frequent oil level changes take place in short amount of time, allowing the air to enter and leave the system, without any unwanted air pressure increase or decrease. TMDA - FILLER BREATHERS WITH DIPSTICK - These filler breathers have the same characteristics as the models TMD, but are equipped with a level dipstick made from zinc plated round section steel. The standard dipstick is 200 mm in length.
