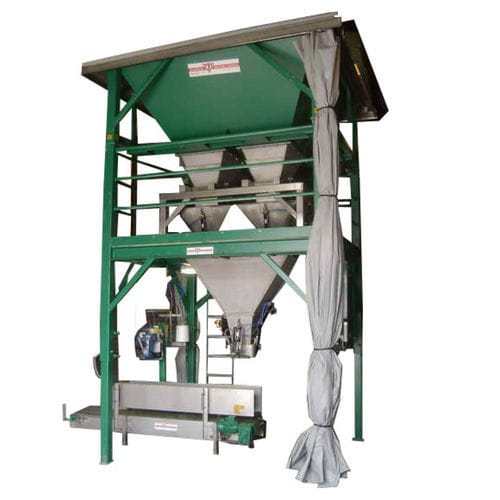

Grain bagger portable

for big bags

This machine is suitable for powder and granular materials. The unit has a steel frame and stands on 4 support legs, these legs support the bagging line and the hopper. The machine is portable and can be moved by a normal forklift. The legs are adjustable and the hopper section can easily be separated from the machine frame. By transport the system is existing out of two sections, the weight frame and the hopper section. The small bag Double Unit has two stainless steel weighing scales with a content of 60 kg each. These two weighing scales produce accurate weighing by the digital load cells. A pneumatic halve moon slide who is mounted under the storage hopper, controls the flow of the product to the weighing scale. When dosing the product, a large or fine valve can be used automatically by means of the position of this slide. An electrical switchboard mounted at the side of the filling machine controls the filling process. The complete unit can be operated by a weighing indicator automatically or manually. Pneumatic stainless steel cylinders with a fibreglass coating operate the complete system. The operator fastens the bag around the filling mouth. A clamp system holds the bag in place. The weighed product falls into the bag. When the bag is full, the clamp releases the bag and the system transports the full bag to a sewing or seal machine. The capacity of the small bag Double Unit is 800 bags per hour when using an open mouth system. When using a valve system with two filling mouths, the capacity is 600 bags per hour.
