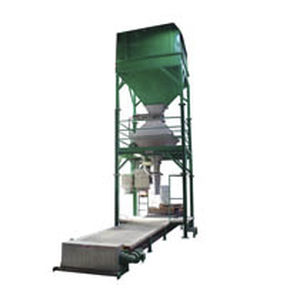

Bagging machine Combi

The FIBC High Speed Big Bag bagging machine can also fill small bags of 25 or 50 kg. The weight system is constructed to ensure there is a weighing accuracy on the digital indicator of 50 grams for the 50 kg. small bags and a 500 grams for the FIBC 500 –1000 kg bags. The unique load cell construction makes this possible. Big bag filling The filling process is the same as the big bag High Speed bagging Line. The product is weighed above the bag in the stainless steel scale. After weighing, the product is flowing down into the big bag by the stainless steel fill pipe. The big bag is standing on the big bag transport conveyor that moves the big bag away from the filling spout. Changing of fill pipes There is a changeable filling pipe for the FIBC big bags and a changeable filling mouth for the 25 – 50 kg small bags. Both filling mouths can be removed and replaced by two men. The electrical system works with connectors, each fill system has his own connector. It is also necessary to move the FIBC bag conveyor and to replace the small bag sewing conveyor and sewing machine. This change can be realized in 5 minutes.
