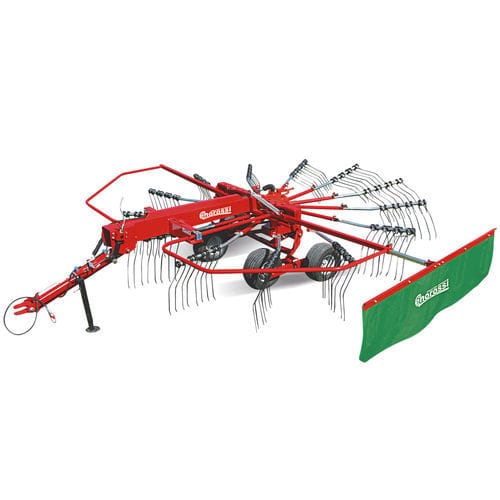

The RR 420-EVO rakes are fitted with tandem wheels. In the 3 points version, the frame is articulated and cushioned with lateral oscillation and locking pin for transport. In the trailed version, the HIGHSPACE system allows the rotor to be raised 50cm from the ground to facilitate passage over the swaths. The raking arms are reinforced.
General characteristics
The ENOROSSI rotary rakes are professional machines that guarantee maximum productivity in any kind of ground. They are all fitted with oil bath rotors, guaranteeing reliability to the machine. Thanks to the perfect adaptation to the ground and the soft harvesting work, they preserve the quality of the product.
Additional support wheel. (optional).
Oil bath rotors.
Tandem double wheel.
Features
STANDARD EQUIPMENT
.Windrow delivery: Left side
.Rotor transmission Oil bath
.Working depth control Mechanical for RR 420-EVO 3PH
.Working depth control Hydraulic for RR 420-EVO PTH
.Drawbar hitch 3 point hitch pivot. for RR 420-EVO 3PH
.Drawbar hitch Trailed for RR 420-EVO PTH
.Transmission with cardan shafts
OPTIONAL
.Additional support wheel for RR 420-EVO 3PH
.Lights and road signaling kit
.Wide angle cardan shaft for tractor for RR 420-EVO PTH
Benefits
HIGHSPACE system
The RR 420-EVO PTH model mounts the HIGHSPACE system which allows the rotor to be raised 50cm from the ground to facilitate the travel over the windrow.
Working position.
Lights and road signaling kit (optional).
Lateral guard for windrow formation.
