Vertical feed mixer MAK-S1,5-11
stationaryside dischargesingle-auger

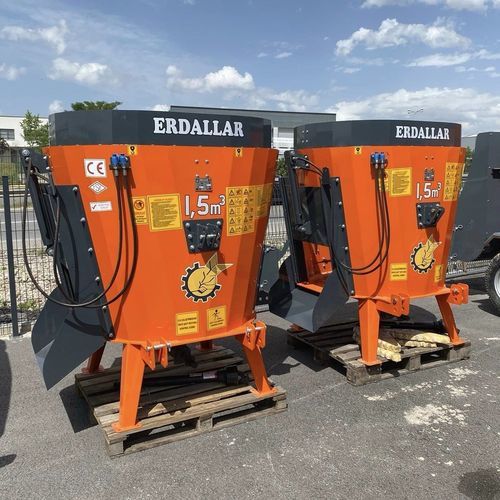

Vertical feed mixer - MAK-S1,5-11 - ERDALLAR AGRICULTURAL MACHINERY - stationary / side discharge / single-auger

Vertical feed mixer - MAK-S1,5-11 - ERDALLAR AGRICULTURAL MACHINERY - stationary / side discharge / single-auger - image - 2

Vertical feed mixer - MAK-S1,5-11 - ERDALLAR AGRICULTURAL MACHINERY - stationary / side discharge / single-auger - image - 3

Vertical feed mixer - MAK-S1,5-11 - ERDALLAR AGRICULTURAL MACHINERY - stationary / side discharge / single-auger - image - 4

Vertical feed mixer - MAK-S1,5-11 - ERDALLAR AGRICULTURAL MACHINERY - stationary / side discharge / single-auger - image - 5

Add to favorites

Compare this product

Go to the ERDALLAR AGRICULTURAL MACHINERY website for more information

Characteristics

Auger orientation: vertical
Mobility: stationary
Discharge type: side discharge
Number of screws: single-auger
Other characteristic: electric motor
Capacity in m³: 1.5 m³
(53 ft³)

Description

.It has the capacity to take care of 10 - 20 cattle or 140 - 160 small cattle .It forms a homogeneous mixture with 1 - 2 bales. .It is possible to work with the tail axle in 380 W. electric motor option. .There are Vertical spiral 6 cutting blades. Technical Features Lenght:1635 mm Width:1525 mm Height:1690 mm Weight:435 kg Tyre Size - Conveyor Dimensions - Material:Steel Pipe Material Type:ST37 Self - Lubricated - Electrical System:Option Transfer System:Shaft ve Reducter Pull Type - RPM:540 d/dk Required Power:25-35 HP Blade Number:6 Blade Type:Triangle Helix Diameter - Helix Rotation Cycle:540/17 Helix Pipe Thickness:7mm Helix Leaf Thickness:6 mm ST52 Side Sheet Thickness:4mm Base Sheet Thickness:8mm Digital Weighing System -
