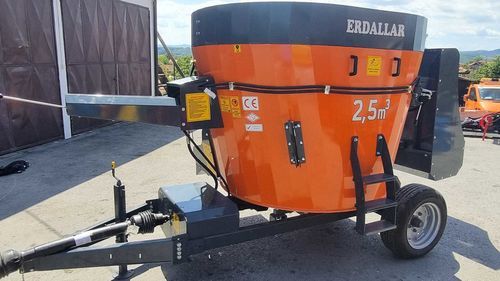

Vertical feed mixer MAK-2,5-11towedside dischargesingle-auger
Add to favorites
Compare this product
Characteristics
- Auger orientation
- vertical
- Mobility
- towed
- Discharge type
- side discharge
- Number of screws
- single-auger
- Capacity in m³
2.5 m³
(88.3 ft³)
Description
.It has the capacity to take care of 35 - 45 cattle or 600 - 650 small cattle.
.It forms a homogeneous mixture with 3 - 5 bales.
.It is scooped, self-lubricated and pumped.
.The machine has vertical helix.
Technical Features
Lenght:4200 mm
Width:1890 mm
Height:2050 mm
Weight:1020 kg
Tyre Size:195/65/12
Conveyor Dimensions -
Material:Steel Pipe
Material Type:ST37
Clamsell Bucket:Standard
Self - Lubricated:Option
Lubricated from Tractor:Option
Electrical System:Option
Transfer System:Shaft ve Reducter
Pull Type:Pull Type
RPM:540 d/dk
Required Power:25-35 HP
Blade Number:8
Blade Type:Triangle
Helix Diameter:1320 mm
Helix Rotation Cycle:540/17
Helix Pipe Thickness:7 mm
Helix Leaf Thickness:7 mm STS2
Side Sheet Thickness:4mm
Base Sheet Thickness:10 mm
Digital Weighing System -
