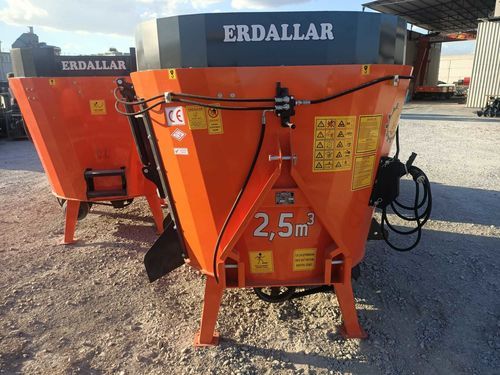

Vertical feed mixer MAK-S2,5-11
stationaryside dischargesingle-auger

Vertical feed mixer - MAK-S2,5-11 - ERDALLAR AGRICULTURAL MACHINERY - stationary / side discharge / single-auger
Vertical feed mixer - MAK-S2,5-11 - ERDALLAR AGRICULTURAL MACHINERY - stationary / side discharge / single-auger
Vertical feed mixer - MAK-S2,5-11 - ERDALLAR AGRICULTURAL MACHINERY - stationary / side discharge / single-auger - image - 2
Vertical feed mixer - MAK-S2,5-11 - ERDALLAR AGRICULTURAL MACHINERY - stationary / side discharge / single-auger - image - 3
Vertical feed mixer - MAK-S2,5-11 - ERDALLAR AGRICULTURAL MACHINERY - stationary / side discharge / single-auger - image - 4
Add to favorites
Compare this product

Go to the ERDALLAR AGRICULTURAL MACHINERY website for more information

Characteristics

Auger orientation
vertical
Mobility
stationary
Discharge type
side discharge
Number of screws
single-auger
Other characteristic
electric motor
Capacity in m³

2.5 m³
(88.3 ft³)

Description

.It has the capacity to take care of 20 - 30 cattle or 250 - 280 small cattle. .It forms a homogeneous mixture with 2 - 3 bales. .It is possible to work with the tail axle in 380 W. electric motor option. .There are Vertical spiral 6 cutting blades. Technical Features Lenght:2150 mm Width:1970 mm Height:1800 mm Weight:770 kg Tyre Size - Conveyor Dimensions - Material:Steel Pipe Material Type:ST37 Clamsell Bucket:Standard Self - Lubricated:Option Electrical System:Option Transfer System:Shaft ve Reducter Pull Type:Pull Type RPM:540 d/dk Required Power:25-35 HP Blade Number:8 Blade Type:Triangle Helix Diameter:1320 mm Helix Rotation Cycle:540/17 Helix Pipe Thickness:7mm Helix Leaf Thickness:6 mm ST52 Side Sheet Thickness:4mm Base Sheet Thickness:10 mm Digital Weighing System -
