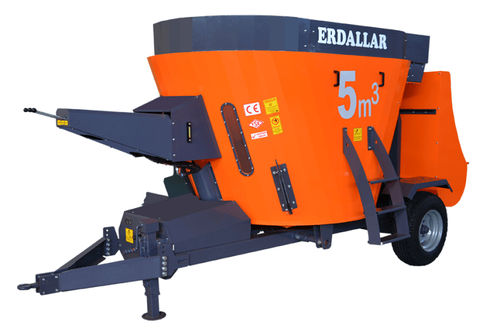

Vertical feed mixer MAK-5-11towedside dischargesingle-auger
Add to favorites
Compare this product
Characteristics
- Auger orientation
- vertical
- Mobility
- towed
- Discharge type
- side discharge
- Number of screws
- single-auger
- Other characteristic
- with weighing system
- Capacity in m³
5 m³
(176.6 ft³)
Description
.It has the capacity to take care of 40 - 60 cattle or 500 - 550 small cattle.
.It forms a homogeneous mixture with 7 - 9 bales.
.Self-lubricated and pumped, with viewing window and loading.
.Optional belt and weighing systems are available.
.There are vertical helix 5 large cutting blade
Technical Features
Lenght:5200 mm
Width:2900 mm
Height:2400 mm
Weight:2350 kg
Tyre Size -
Conveyor Dimensions:570 x 750
Material:Steel Pipe
Material:Type ST37
Clamsell Bucket:Standard
Self - Lubricated:Standard
Lubricated from Tractor -
Electrical System:Option
Transfer System:Shaft ve Reducter
Pull Type:Pull Type
RPM:540 d/dk
Required Power:35-55 HP
Blade Number:5
Blade Type:Triangle
Helix Diameter:1560 mm
Helix Rotation Cycle:540/17
Helix Pipe Thickness:10 mm ST52
Helix Leaf Thickness:8 mm ST52
Side Sheet Thickness:5mm
Base Sheet Thickness:15 mm
