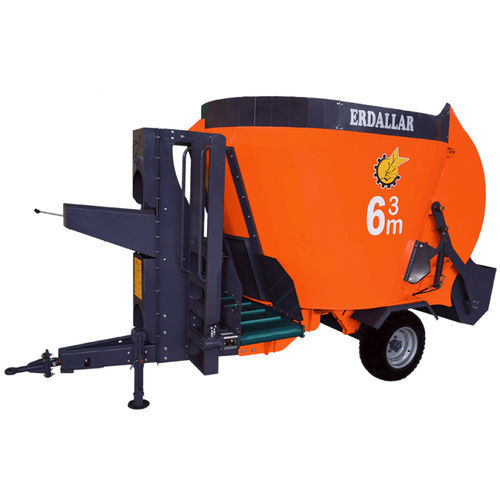

Vertical feed mixer MAK-6-11towedfront dischargesingle-auger
Add to favorites
Compare this product
Characteristics
- Auger orientation
- vertical
- Mobility
- towed
- Discharge type
- front discharge
- Number of screws
- single-auger
- Other characteristic
- with weighing system, with loading scoop
- Capacity in m³
6 m³
(211.9 ft³)
Description
.It has the capacity to take care of 50 - 70 cattle or 600 - 650 small cattle.
.It forms a homogeneous mixture with 8 - 11 bales.
.Optional weighing system is available.
.The machine has vertical helix.
Technical Features
Lenght:5180 mm
Width:1940 mm
Height:2870 mm
Weight:2650 kg
Tyre Size -
Conveyor Dimensions:570 x 1800
Material:Steel Pipe
Material:Type ST37
Pre EmbtidBand:Standard
Clamsell Bucket:Standard
Self - Lubricated:Standard
Lubricated from Tractor -
Electrical System -
Transfer System: Shaft ve Reducter
Pull Type:Pull Type
RPM:540 d/dk
Required Power:35-55 HP
Blade Number:5
Blade Type:Axe and Mixer
Helix Diameter:1650 mm
Helix Rotation Cycle:540/17
Helix Pipe Thickness:10 mm ST52
Helix Leaf Thickness:10 mm ST52
Side Sheet Thickness:5mm
Base Sheet Thickness:15 mm
