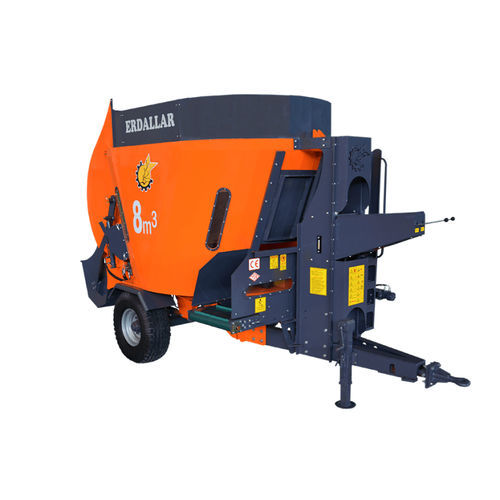

Vertical feed mixer MAK-8-11towedfront dischargesingle-auger
Add to favorites
Compare this product
Characteristics
- Auger orientation
- vertical
- Mobility
- towed
- Discharge type
- front discharge
- Number of screws
- single-auger
- Other characteristic
- with weighing system
- Capacity in m³
8 m³
(282.5 ft³)
Description
.It has the capacity to take care of 75 - 80 cattle or 750 - 800 small cattle.
.It forms a homogeneous mixture with 10 - 12 bales.
.Optional weighing system is available.
.The machine has vertical helix.
Technical Features
Lenght:5230 mm
Width:2100 mm
Height:3020 mm
Weight:3050 kg
Tyre Size -
Conveyor Dimensions:570 x 2100
Material:Steel Pipe
Material:Type ST37
Pre EmbtidBand:Standard
Clamsell Bucket:Standard
Self - Lubricated:Standard
Lubricated from Tractor -
Electrical System -
Transfer System:Shaft ve Reducter
Pull Type:Pull Type
RPM:540 d/dk
Required Power:35-55 HP
Blade Number:9
Blade Type:Triangle
Helix Diameter:1800 mm
Helix Rotation Cycle:540/17
Helix Pipe Thickness:10 mm ST52
Helix Leaf Thickness:10 mm ST52
Side Sheet Thickness:5mm
Base Sheet Thickness:20 mm
