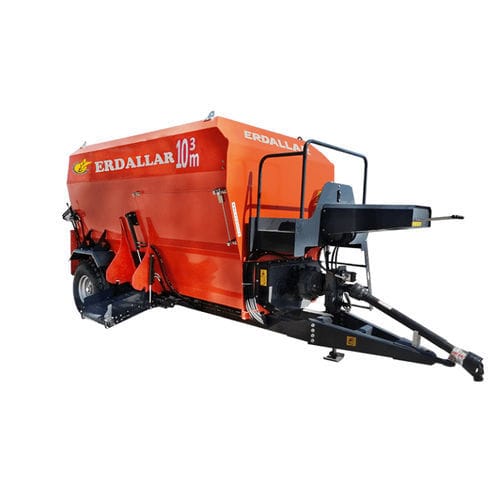

Horizontal feed mixer MAK-10-22towedside discharge2-auger
Add to favorites
Compare this product
Characteristics
- Auger orientation
- horizontal
- Mobility
- towed
- Discharge type
- side discharge
- Number of screws
- 2-auger
- Other characteristic
- with weighing system
- Capacity in m³
10 m³
(353.1 ft³)
Description
.It has the capacity to take care of 85 - 100 cattle or 850 - 900 small cattle.
.It forms a homogeneous mixture with 12 - 14 bales.
.It has a belt system, bucket, self-lubricating and pumped.
.There are horizontal double helix.
Technical Features
Lenght:5680 mm
Width:2200 mm
Height:2600 mm
Weight:4600 kg
Tyre Size:10-75/15,3
Conveyor Dimensions:570 x 750
Material:Steel Pipe
Material:Type ST37
Self - Lubricated:Standard
Electrical System -
Transfer System:Shaft ve Reducter
Pull Type:Pull Type
RPM:540 d/dk
Required Power:55-75 HP.
Blade Number:156
Blade Type:Axe and Mixer
Helix Diameter:420 mm
Helix Rotation Cycle:540/17
Helix Pipe Thickness:10 mm ST52
Helix Leaf Thickness:15 mm ST52
Side Sheet Thickness:5mm
Base Sheet Thickness:10 mm
