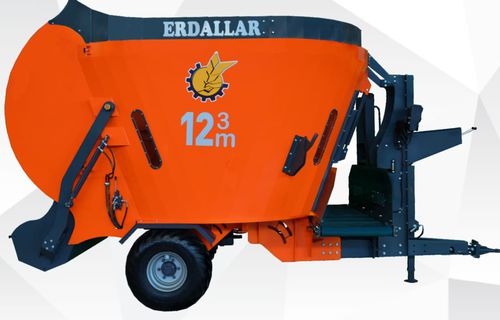

Vertical feed mixer MAK-12-11towedfront dischargesingle-auger
Add to favorites
Compare this product
Characteristics
- Auger orientation
- vertical
- Mobility
- towed
- Discharge type
- front discharge
- Number of screws
- single-auger
- Other characteristic
- with weighing system, with loading scoop
- Capacity in m³
12 m³
(423.8 ft³)
Description
It has the capacity to take care of 120 - 130 cattle or 1200 - 1300 sheep & goat.
It forms a homogeneous mixture with 20 - 25 bales.
Optional weighing system is available.
The machine has vertical helix.
Technical Features
Lenght: 5610 mm
Width: 2400 mm
Height: 3320 mm
Weight: 4400 kg
Conveyor Dimensions: 710 x 2450
Material: Steel Pipe
Material Type: 12mm ST37
Transfer System: Shaft and Reducter
Pull Type: Pull Type
RPM: 540 d/dk
Required Tractor Power: 75-85 HP
Number of Blades: 10
Blade Type: Ax and daisy
Helix Diameter: 2400 mm
Helix Rotation Cycle: 33,5 per minute
Side Sheet Thickness: 5mm
Base Sheet Thickness: 20 mm
Loading Bucket: Standard
Self Lubrication: Standard
Digital Weighing System: Optional
Electric Motor: Optional
