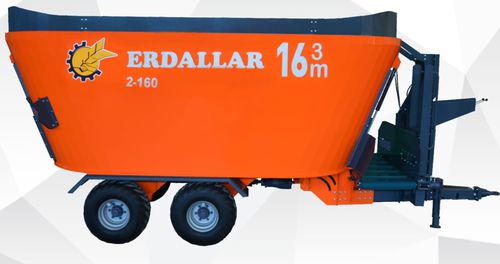

Vertical feed mixer MAK-16-12towedfront discharge2-auger
Add to favorites
Compare this product
Characteristics
- Auger orientation
- vertical
- Mobility
- towed
- Discharge type
- front discharge
- Number of screws
- 2-auger
- Other characteristic
- with weighing system
- Capacity in m³
16 m³
(565 ft³)
Description
It has the capacity to take care of 160 - 170 cattle or 1600 - 1700 sheep & goat.
It forms a homogeneous mixture with 23 - 27 bales.
Optional weighing system is available.
The machine has vertical helix.
Technical Features
Lenght: 7025 mm
Width: 2100 mm
Height: 3020 mm
Weight: 5600 kg
Conveyor Dimensions: 710 x 2100
Material: Steel Pipe
Material Type: 10mm ST37
Transfer System: Shaft and Reducter
Pull Type: Pull Type
Required Tractor Power: 85-95 HP
Number of Blades: 18
Blade Type: Special form
Helix Diameter: 1800 mm
Helix Rotation Cycle: 33,5 per minute
Number of Helix: 2
Side Sheet Thickness: 5mm
Base Sheet Thickness: 20 mm
Self Lubrication: Standard
Conveyor Belt: Standard
Gear Transmission: Standard
Digital Weighing System: Optional
Electric Motor: Optional
Rear Discharge Belt: Optional
Loading Bucket: Optional
Piston Jack: Optional
