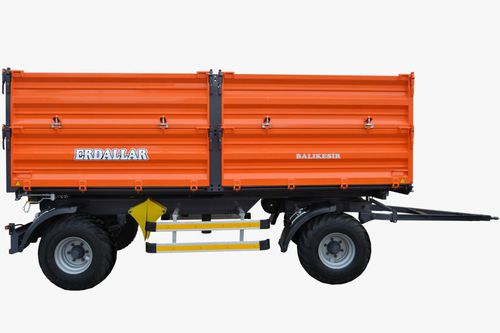

Tipping trailer DNR-100-23

2-axleagricultural10 ton

standard equipments: permissible weight: 14000 kg loading capacity: 10300 kg empty weight: 3300 kg loading volume: 11,8 m3 loading space: 9,8 m2 back cover discharge window stairs rear brake lights rear brake lights protective sheet rear fenders overall dimensions: 6450/2460/2390 mm side wall height: 600 + 600 mm base & wall thickness: 5 / 2,5 mm chassis floor height from the ground: 1020 mm tire track width: 1750 mm parabolic springs tires: 400/60-R15,5 maximum speed: 40 km/h tipping system: 3 way required tractor power: 70 / 51,4 hp/kw tipping angle (back&sides): 50 /45 ^ loading bag RAL code: 2004 chassis RAL code: 7024 options (can be bought): hydraulic brake air brake air&hydraulic combined brake system air system handbrake load indexed air brake adjustment system tire option 500/50-17 hydraulic connection for rear trailer brake connection for rear trailer electrical socket for rear trailer back hitch plastic wheel chock additional 30 cm additional 50 cm additional 60 cm plastic soap water tank bicycle rack position lights lane tracking lights front fenders grain discharge screw with lift tent spare tire (should be asked)
