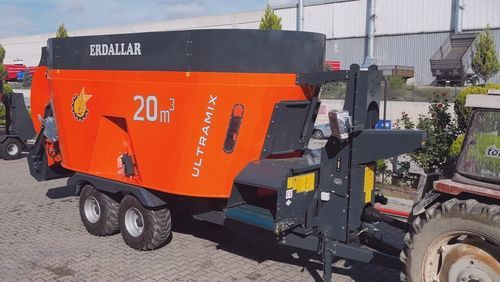

Vertical feed mixer MAK-20-12towedfront discharge2-auger
Add to favorites
Compare this product
Characteristics
- Auger orientation
- vertical
- Mobility
- towed
- Discharge type
- front discharge
- Number of screws
- 2-auger
- Other characteristic
- with weighing system, with loading scoop
- Capacity in m³
20 m³
(706.3 ft³)
Description
It has the capacity to take care of 200 - 210 cattle or 2000 - 2100 sheep & goat.
It forms a homogeneous mixture with 25 - 30 bales.
Optional weighing system is available.
The machine has vertical helix.
Technical Features
Lenght: 7390 mm
Width: 2350 mm
Height: 3130 mm
Weight: 6000 kg
Conveyor Dimensions: 730 x 2100
Material: Steel Pipe
Material Type: 10mm ST37
Transfer System: Shaft and Reducter
Pull Type: Pull Type
RPM: 540 d/dk
Required Tractor Power: 95-105 HP
Number of Blades: 18
Blade Type: Special Form
Helix Diameter: 2100 mm
Helix Rotation Cycle: 33,5 per minute
Side Sheet Thickness: 6mm
Base Sheet Thickness: 20 mm
Loading Bucket: Standard
Self Lubrication: Standard
Digital Weighing System: Optional
