Tipping trailer POOL TYPE
tandem axleagricultural12 ton

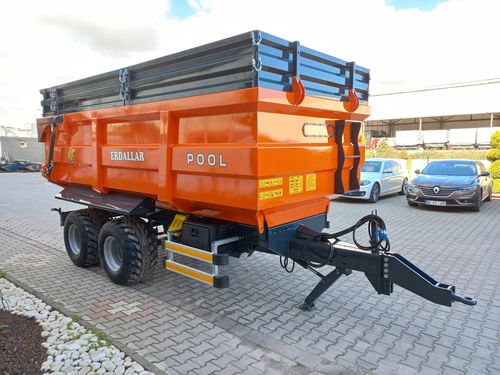

Tipping trailer - POOL TYPE - ERDALLAR AGRICULTURAL MACHINERY - tandem axle / agricultural / 12 ton
Tipping trailer - POOL TYPE - ERDALLAR AGRICULTURAL MACHINERY - tandem axle / agricultural / 12 ton
Tipping trailer - POOL TYPE - ERDALLAR AGRICULTURAL MACHINERY - tandem axle / agricultural / 12 ton - image - 2
Tipping trailer - POOL TYPE - ERDALLAR AGRICULTURAL MACHINERY - tandem axle / agricultural / 12 ton - image - 3
Tipping trailer - POOL TYPE - ERDALLAR AGRICULTURAL MACHINERY - tandem axle / agricultural / 12 ton - image - 4
Tipping trailer - POOL TYPE - ERDALLAR AGRICULTURAL MACHINERY - tandem axle / agricultural / 12 ton - image - 5
Tipping trailer - POOL TYPE - ERDALLAR AGRICULTURAL MACHINERY - tandem axle / agricultural / 12 ton - image - 6
Tipping trailer - POOL TYPE - ERDALLAR AGRICULTURAL MACHINERY - tandem axle / agricultural / 12 ton - image - 7
Tipping trailer - POOL TYPE - ERDALLAR AGRICULTURAL MACHINERY - tandem axle / agricultural / 12 ton - image - 8
Tipping trailer - POOL TYPE - ERDALLAR AGRICULTURAL MACHINERY - tandem axle / agricultural / 12 ton - image - 9
Tipping trailer - POOL TYPE - ERDALLAR AGRICULTURAL MACHINERY - tandem axle / agricultural / 12 ton - image - 10
Tipping trailer - POOL TYPE - ERDALLAR AGRICULTURAL MACHINERY - tandem axle / agricultural / 12 ton - image - 11
Add to favorites
Compare this product

Go to the ERDALLAR AGRICULTURAL MACHINERY website for more information

Characteristics

Construction
tipping
Number of axles
tandem axle
Application
agricultural
Payload
12 ton
Brake system
with hydraulic braking, with pneumatic braking
Empty weight

3,600 kg
(7,936.6 lb)

Recommended power

58.8 kW
(79.9 hp)

Load volume

17.06 m³
(602.468 ft³)

Loading case lenght

4,700 mm
(185 in)

Loading case width

2,200 mm
(86.6 in)

Loading case hight

1,650 mm
(65 in)

Description

POOL TYPE TRAILER Permissible total weight: 15700 kg Loading capacity: 12100 kg Empty weight: 3600 kg Loading volume: 17.06 m3 Loading space: 10.34 m2 Loading case: 4700x2200x1650 mm Overall dimensions: 6317x2423x2742 mm Base and side wall thickness: 4 / 4 / 2,5 mm Wheels: 500/50-17 Optional tires: 385/65-R22,5 Suspension: Parabolic springs Required tractor power: 80 / 58,8 hp/kw Standard equipments: Back cover discharge window, stairs, rear brake lights, rear brake lights protective sheet, rear fenders Extra options that can bought: Hydraulic jack, air brake, hydraulic brake, air system handbrake, load indexed air brake adjustment system, hydraulic connection for rear trailer, brake connection for rear trailer, electric socket for rear trailer, back hitch, plastic wheel chock, soap plastic water tank, position lights, lane tracking lights, front fenders, Ø170mm grain discharge auger with lift, tent, spare tire
