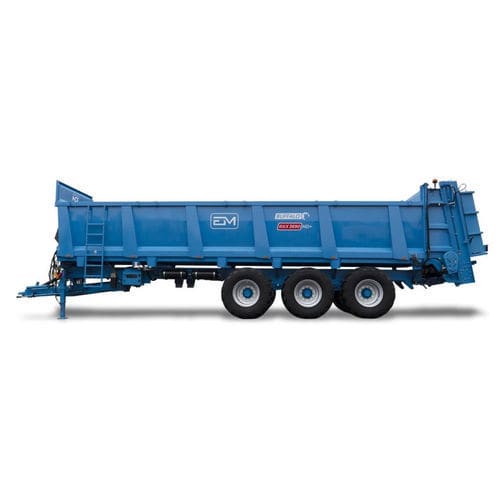

Towed manure spreader BUFFALO RXX HD+ series

verticals beaters3-axle

Continuously variable transmission up to 400 hp (1000 rpm) Made of quality steel S355J2+N Reinforced gearbox Double-drum, 2 m high* Transmission ratio 1/2,36 Speed of beaters 424 rpm at 1000 rpm of PTO Beaters Ø 178 mm and 8 mm thick walls Replaceable cutting knives HARDOX 12 mm (25 pcs per beater) Spiral made of 15 mm thick metal sheet Distance between cutting knives - 50 mm Bottom plates, diameter 1080 mm, with replaceable paddles Oil sight glass Central lubrication of top bearings Forklift slots Construction of manures spreader Loading box made of HARDOX steel; 3 mm thick walls and 4 mm thick floor 4-chain conveyor - Ø 18 mm with a 33 t breaking capacity per chain Floor bars with a closed profile Chain floor conveyor slides Hydraulic continuously variable chain floor conveyor Air brakes (dual circuit) Hydraulic support foot Inspection ladder Wide-angle PTO shaft Detachable ball hitch LED lights End-outline marker lights Central deflector for seeding lime Road safety signs, lights and markings (front, rear, side) Two side gearboxes * beater height
