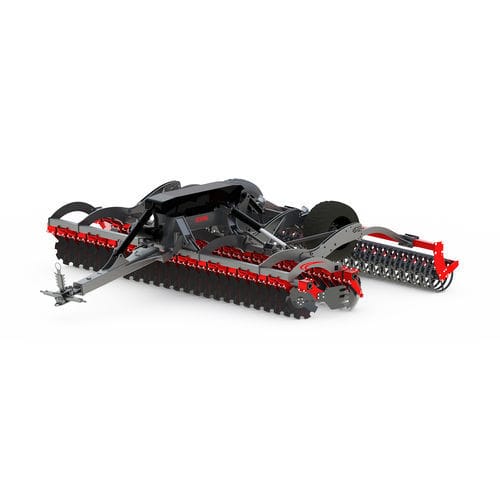

Towed disc harrow REX 610

2-sectionwith rollerwith hydraulic adjustment

The 610 disc harrows are used for undercutting and mixing stubble and harvest residues. High work efficiency with relatively low power requirement. The machine is ideally suited for shallow stubble cultivation in order to stimulate the germination of self-seeding, break capillarity and prepare for sowing. Mixing – even difficult – harvest residues without clogging up the machine. Problem-free mixing of organic fertilizers, i.e. manure, liquid manure, soil fertilization. The machine leaves behind a crumbled, compacted soil with the worst conditions for the emergence of the plant. Two rows of discs with a diameter of Φ610 mm allow for effective undercutting and mixing of plant residues. Tubular roller Φ540 mm as standard and optional C-RING tandem Φ580 or V-RING Φ600 mm. •toothed disc Φ610 mm •rubber protection of each plate •maintenance-free hub •smooth adjustment of the working depth •transport wheels 500/45 – 22.5 (diagonal) •ground clearance of 770 mm •distance between the beams 1070 mm •support foot •tubular roller Φ540 mm •drawbeam •side cover •varnish coat with enhanced parameters
