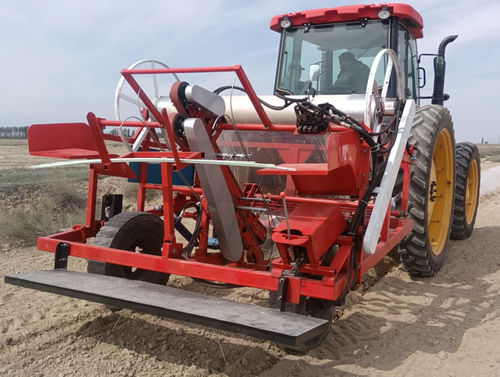

Plastic mulch puller with hoops puller 13MG-100

Tunnel collector is the revolutionary designed machine combined 2 functions of mulch rollback and hoops puller. It is driven by high clearance tractor, first to shaved out the soil on tunnel foot, then lift the mulch and rewind with hydraulic roller in a flat mode for next season use. The last step is to pull out the poles by teethed belt hardly from soil then transmit to storage carbin. One person needs to supervise the poles are pulled horizontally in correct position. This machine can collect different kind of tunnels, it is easily adjustable to fit hoops width, distance, depth and all kinds of mulch and nets. The mulch can be laid for perfect shape and strong enough against 6 degrees wind. Working speed: 4 km/h above depends on mulch material and thickness. ADVANTAGE： -Automatic one step to collect the tunnels and leave nothing in the field. -Low power consumption: 65HP tractor with hydraulic system needed with 40 liters/min. No PTO, no electric output, no air compressor needed. -Flat rewind function: the mulch even the thinner type can be rolled back in a perfect flat mode for storage and next season use. NO tearing. -Pole storage fast: best rebound EPGF and POM poles can be straight after pull out from soil, it can save lots of storage space. But if galvanized poles, it will be peirodically manual bind and move to open space since its arc shape. -Quick collecting speed: 4 km/h above at hoops distance 1.3m.
