WITH YEARS OF ON-FARM TESTING AND REFINEMENTS THE FARM KING 4480XD SQUARE BALE CARRIER OFFERS SIMPLIFIED OPERATION AND AN INTUITIVE DISPLAY.

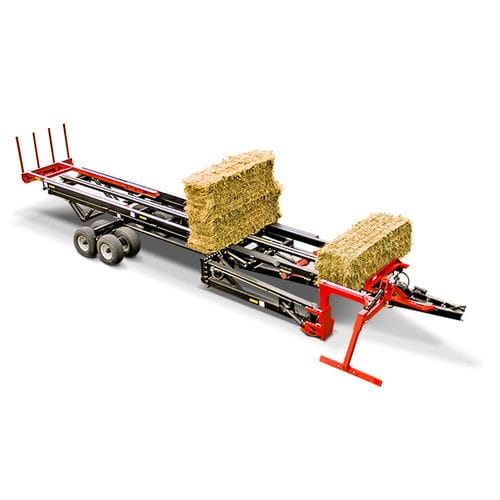

The Farm King 4480XD Square Bale Carrier improves it’s capacity with 9 4'x4', 20 3'x4' and 24 3'x3' bales picked per load. With full customization and the quarter turn option you can configure it to perform to your operation’s needs. The 4480XD features a host of new innovations and technology designed to increase efficiency, maximize durability and minimize bale damage.
FEATURES
STRUCTURE
The Farm King 4480XD square bale mover features a heavy-duty undercarriage and 4" x 8" beams to support heavy loads under stress. The 4480XD also has eight bolt heavy-duty wheels. The tandem walking beam axles reinforce the overall stability and structural integrity.
UNLOADING
Unloading is quick and easy thanks to the innovative design of the carrier. The rear deck tilts backward, resting the back half of the load on the ground. Move the carrier forward and return the tilt deck to the neutral position. Push the remaining bales to the back of the carrier and repeat the process.
STACKING
The bales are stacked in tight rows. The strings are not touching the ground, which prevents prolonged exposure to surface moisture. As settling occurs, the bales rest together in a structurally sound stack.
