Orchard harvest trolley Atlas 1

self-propelledadjustable-height

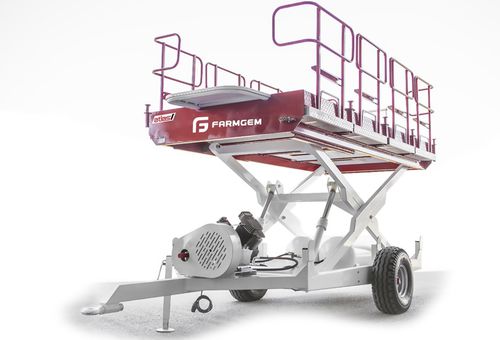

The Atlas is a versatile harvest and crop maintenance platform with 6 adjustable workstations. Two models are available Atlas 1 – with dimensions of 1.75m x 3.50m and Atlas 2 – with dimensions of 1.45m x 3.50m. A hydraulic scissor lift system allows operations at varying heights which is controllable from the platform up to maximum height of 260cm. Each workstation has individual extendable platforms with a non-slip flooring and a safety railings, to give excellent working access. The high-quality design and strong built can carry up to 900kg and provides excellent stability and many safety features including a hydraulic failsafe system. Also equipped with the Plus Air system each workstation can then operate any pneumatically operated tools such as pruning shears, loppers or saws. SPECIFICATION -Maximum 6 people can work from the unit -Reinforced heavy-duty chassis, coated with powder paint -Air compressor and twin tanks, capacity 400 litres -Additional rear hitch point for towing accessories -Adjustable parking leg -Heavy duty lifting cylinders with safety valves -Hydraulic brakes -Reinforced lifting rams -Full handrails for operation safety -Non-slip platform -Road lights -PTO drive shaft OPTIONS Mechanical tracking drawbar Hydraulic tracking drawbar Pneumatic pruning shear + 5m air hose
