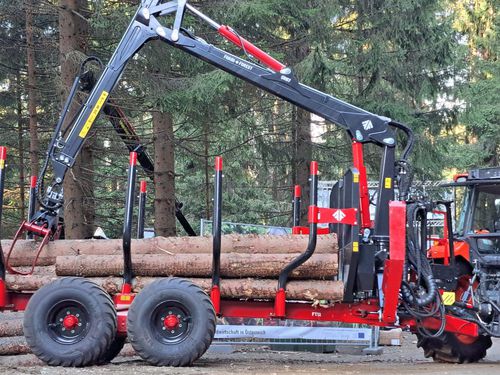

Trailer-mounted forestry crane CR67+

knuckle boom

The CR67 crane creates efficiency and high performance. The crane range is 7.1 m, gross lifting moment 67 kNm and turning force 19 kNm. A robust and powerful die-cast gear house. The oil drain cap makes maintenance easy. The crane’s standard equipment also includes a lift cylinder cover. Adjustable slide pieces in the sides. The wood crane has flap down legs with a three-point hitch. The flap down legs create a sturdy basis for using the crane when the legs are in the downward position. An appropriate leg structure and the legs’ long head board provide excellent stability during tilting. There are cylinder covers on both sides of the legs. Bidirectional lock valves. All cranes have the same 175 mm x 175 mm bolt pattern in the slewing unit. Specification Details Gross lifting moment (kNm) 67 Turning moment (kNm) 19 Weight (kg) 940 Extension boom Single Rotator CR505-F140 Control valve options Mechanical on/off, hydraulic pre-control, electric control, remote control
