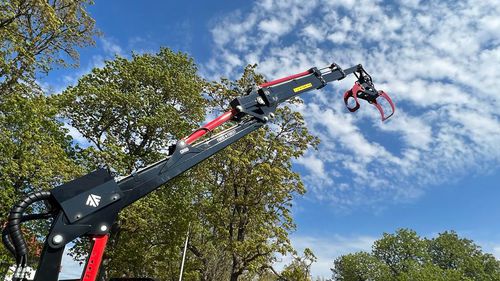

Trailer-mounted forestry crane CR89

knuckle boom

The CR89 is a powerful and high-performance crane with two extensions. Crane range is 9 m, gross lifting torque 75 kNm and turning force 19 kNm. Sturdy and powerful casting turning nest. Thanks to the oil drain cap, the crane is easy to maintain. Also, the protection of the lifting cylinder belongs to the crane as standard. Adjustable side pieces on the sides. The wood crane has flap down legs with a three-point hitch. The flap down legs create a sturdy basis for using the crane when the legs are in the downward position. An appropriate leg structure and the legs’ long head board provide excellent stability during tilting. There are cylinder covers on both sides of the legs. Bidirectional lock valves. All cranes have the same 175 mm x 175 mm bolt pattern in the slewing unit. Specification Details Gross lifting moment (kNm) 74 Turning moment (kNm) 19 Weight (kg) 1210 Extension boom Double Rotator GV 6 Control valve options Electric control, remote control
