Loader wagon TDK 1500F

tandem axleforestry10 t ... 20 t

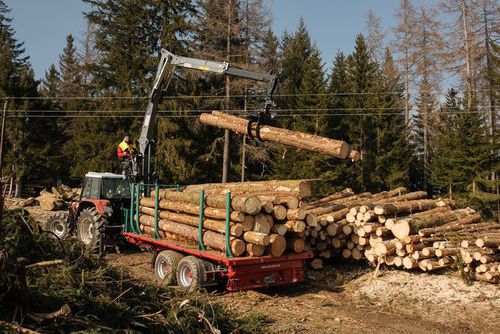

The tandem-axle tractor trailer TDK 1500F with integrated crane is a perfect solution for universal use both in forestry and agriculture or public utilities. Its high quality, flexibility and versatility provides the functionality and efficiency of your chores. It is designed for the most demanding users to work in difficult conditions, and ensures long-lasting and professional performance. HIGHLIGHTS CHASSIS Sturdy frame made from steel square tube 300 x 100 x 6 mm, trapezoidal tipping frame, tandem chassis with parabolic springs mounted below, high drawbar hitch with fix towing eye D40 mm, landing gears (with gear box, double speed, three-stages), preparation for trailer coupling, underride guard with commercial LED road lighting system (EU) 2015/208, rear socket, rear wall support with the wheel (right rear), wheel chocks, equipment for the crane AXLE Two heavy duty ADR-axles with 8-stud rims, track 1750 mm, wheelbase 1010 mm, axle load 8000 kg/axle at 25 km/h and 7500 kg/axle at 40 km/h, brake cam 350 x 90 mm Brakes: 1L Hydraulic brake with valve and manual regulator or dual-line airbrake system, additional parking brake BODY The floor made of 4 mm steel plate, plugged corner stanchions, steel sideboards and extension boards (FUHRMANN profile) with quick shutters, swinging and collapsible boards opening, central locking lever (left-right-rear), sideboard lifting springs (left and right with carrier), grain release with lever, access ladder according to accident prevention regulation (UVV), levers for timber transport (10 pcs), 6x fastening rings, plug-in front grille with safety bolts and screw inserts
