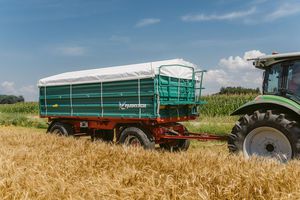

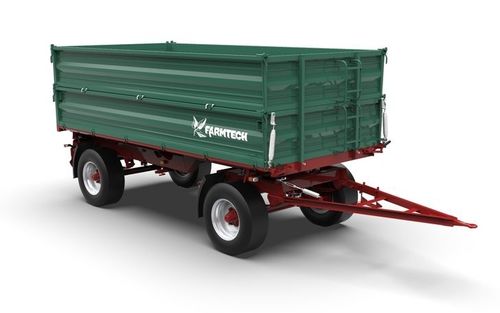

Dump trailer ZDK 1100

tipping2-axleagricultural

For maximum transport service under strict preconditions the double-axle tipping trailer ZDK is extremely suitable. The sturdy frame and the bridge frame are designed for high burdens and provide maximum torsional stiffness. The parabolic suspension and the wide track provide an even load on the axes on extremely fast drives. At the same the standard safety of the tipping is getting higher. The large palette of ZDK models offers with a load volume from 10 to 30 m3 for almost all agricultural goods an excellent transport solution. Optional equipment versions like hydraulic openings of the sidewalls or a side chute increase the operating comfort. HIGHLIGHTS CHASSIS Sturdy frame made from steel square tube 220 x 120 x 6 mm, trapezoidal tipping frame, parabolic springs, strong ball rim bearing 1010 mm, draw-bar with height adjustment, preparation for trailer coupling, underride guard with commercial LED road lighting system (EU) 2015/208, rear socket, wheel chocks AXLE Two heavy duty ADR-axles with 6-stud rims, track 1740 mm, axle load 7000 kg/axle at 25 km/h and 6000 kg/axle at 40 km/h, brake cam 350 x 90 mm BRAKES 1L Hydraulic brake with a mechanical valve and manual regulator or dual-line airbrake system, additional parking brake TIPPING MECHANISM Ball tipping mounting with conical socket, 4-stage hard-chromed telescoping cylinder, automatic stroke limiter, rear hydraulic connection for second trailer
