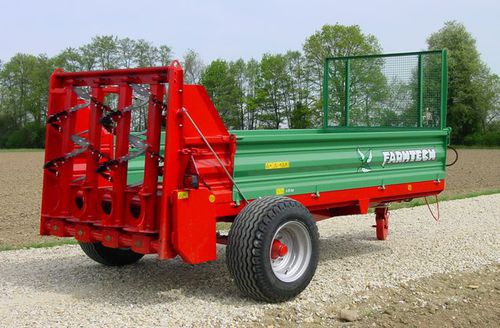

Towed manure spreader MINIFEX 500

verticals beaterssingle-axle

Due to the wide track and extremely low design the mountain spreader Minifex is particularly suitable for steep slopes. The high quality axle design with deep-lying focus combines the highest stability and manoeuvrability – this makes the set back axle for optimal weight distribution and high load on the tractor. A continuous, torsionally rigid frame guarantees high load capacity, stability and ensures a long working life. HIGHLIGHTS CHASSIS Trapezoidal V-frame made of 5 mm metal sheet, high drawbar hitch with adjustable towing eye D40 mm, wheel jack with semi-automated turnover and spring AXLE Heavy duty ADR-axle with 6-stud rims, track 2100 mm, axle load 7200 kg/axle, brake cam 300 x 90 mm, brake load 5396 kg/axle BRAKES Hand brake BODY Framework profile 181 x 114 / 60 x 4 mm, steel sideboards 500 mm (FUHRMANN profile), collapsible boards opening, several times glued wooden floor 30 mm thick, front plug-in view grill (perforated sheet) DRIVE WALTERSCHEID PTO drive shaft with overload clutch 800 Nm, operating at 540 rpm, continuous drive with shear bolt clutch FLOOR CONVEYOR Hydraulic drive with hydraulic motor and chains stepless speed control, forward and reverse flow, 2 high-strength round steel chains (8 x 31 mm) with sturdy floor strips, floor conveyor feed can be easily operated from the tractor cabin, mechanic chain tensioner
