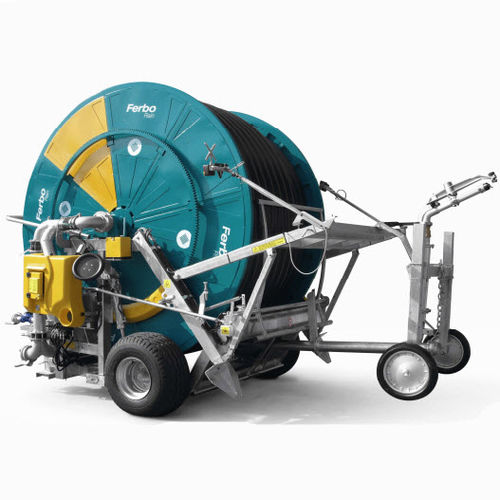

Irrigation hose traveler GHA.S

turbine-drive

– Galvanized frame on GH-GHs-GHAGHAs – Painted on GHB-GHC – Painted reel RAL 5021 – Mechanical parts painted with RAL colour No. 5021 – Flanged turbine on the gearbox with speed control and compensator – 4 speed gearbox, with mechanical drive disengagement, device for rewinding through PTO and rewinding out of the drum – Digital hour meter – Leadscrew hose layering device – 2 wheels sprinkler trolley with adjustable track – Hydraulic system with quick clutches to be connected to the tractor and with five control levers for: rotation, right and left wheel lift, jack, trolley lift and staker legs – Drawbar with adjustable connection in height and lateral staker legs – Sectoring sprinkler with set of nozzles – Supply hose 4mt. with female ball joint on line side – Double water inlet – Instructions and maintenance handbook – Guarantee coupon
