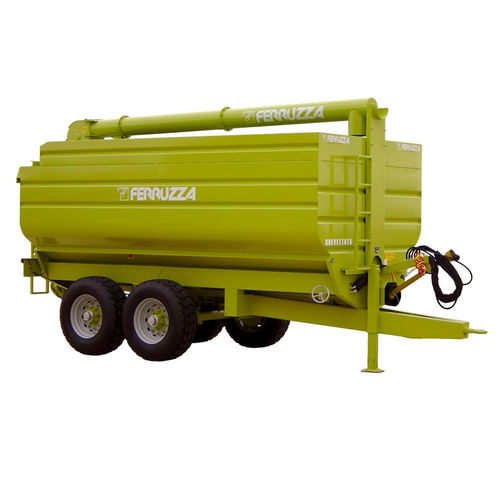

Chaser bin LG SERIES

tandem axlegrain14 tons

• Propeller shaft with clutch • 360-degree hydraulic rotation of the auger boom • Hydraulic lifting of the auger boom • Diameter of the auger boom + upright pipe 273 mm • Safety valves of the auger boom (rotation+lifting) • Hydraulic jack • Parabolic cantilever leaf springs • 100 mm square axles, cast iron drums 400x80, 10 stud wheel hubs, and adjustable brake levers • The lower bend is made up of an oil-immersed 90 degree bevel gearbox (Ferruzza patent) • Upper articulated bend (Ferruzza patent) • The rotation of the auger boom is performed by means of a ring-pinion gear • The auger conveyors located under the floor of the container and inside the boom are supported by an intermediate bearing • Auger bearings have a labyrinth seal and can be greased from outside • All bearings located inside the articulated bend have a labyrinth seal and can be greased from outside
